CarNetix

CBL-146 2

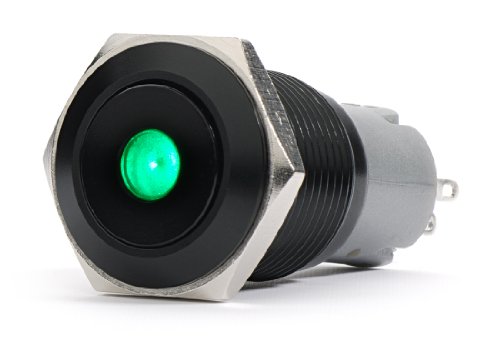

Black Push Button Switch Latching Green Dot LED 18mm

EAN: 0608819327174

UPC: 608819327174

Pushbutton Switches

16mm diameter
Switch Rating: 3A/250VAC
Operation Type: Latching
The Front Shape: Flat Round
The crust material: Black Plastic

Black Pushbutton Switch with metal internal construction. Extremely solid construction. Diameter is approximately 18mm. Mounting depth is approximately 39mm Contact resistance: ?50m? Insulation resistance: ?1000M? Dielectric Intensity: 2000VAC Operating Temp: -20?~ +55? Mechanical Life: 1,000,000 cycles Electrical Life: 200,000 cycles Operation Pressure: About 4N Operation Travel: About 1.5mm LED Life: 40000 hours 16mm diameter Switch Rating: 3A/250VAC Contact Configuration: 1NO1NC /2NO 2NC Operation Type: Latching The Front Shape: Flat Round The crust material: Black Plastic Ring Illuminated IP Degree: IP40
