Fittings for Aluminum Track-Multi Packs

48123-20-20

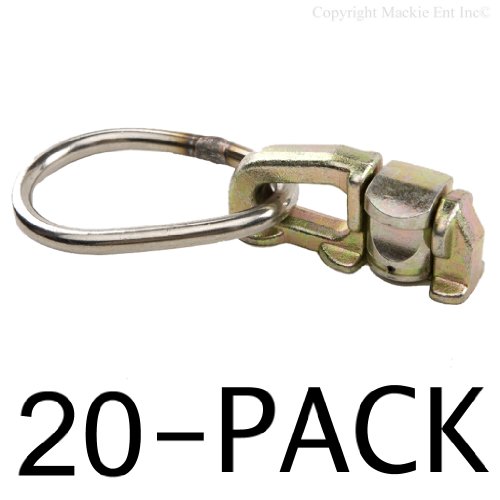

Aluminum Track Tiedown Fitting 6,500 lb. Capacity - Tiedowns 20-Pack

Ratcheting

This listing is for twenty (20) fittings. When purchased individually they cost $8.95 each, therefore saving $37.15.
Triple Stud 6,500 lb.* capacity rating. WLL (working load limit) is 2,166 lb. capacity.
The fittings' steel base is zinc plated to inhibit corrosion.
Base measures 2-1/2" long x 7/8" wide. 1/4" thick stainless steel ring measures 2"W x 3"L

Triple Stud w/ pear shaped ring - 6,500 lb. capacity rating. This fitting fits all aluminum tracking similar to the track in the image above. Triple stud refers to the number of "fingers" that it captures when attached. The fittings' steel base is zinc plated to inhibit corrosion. It is SPRING LOADED to permit simple attach and detach operation. To detach, simply pull up on the spring loaded mechanism and then slide forward or back and the fitting releases. To attach, rest the fitting in the load track, then push down on the base and push forward. The triple stud fitting attaches to three sets of "fingers" in the load track, thus giving you a more secure attachment than the single or double stud fitting. IT IS NOT recommended to pull at an angle greater than 45 degrees. As a rule of thumb you lose about half your rating at a 45 degree angle. In a particular application the 1/4" thick stainless steel pear shaped ring (measuring 2"W x 3"L) has a certain advantage over the double stud fittings with "O" rings. When the rectangular load track (not the beveled) is installed against a wall the "O" ring will scrape the side wall when applying tiedown strap tension. A simple remedy can be securing the track slightly away from the wall, or using this pear shaped or a ringless triple stud fitting. * WLL The maximum load weight a tie-down should be subjected to during normal use. To assist in making the proper tie-down choice the Federal D.O.T. requires the W.L.L. to be 1/3 of the Rated Capacity.
