XL2Z-10346

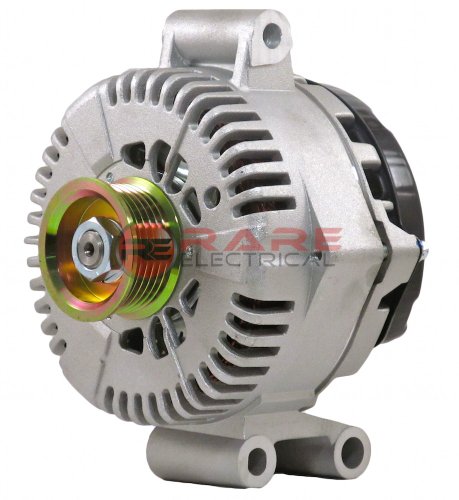

New Ford Explorer Mercury Mountaineer High Output Alternator 200 Amp 1996-2003

SKU: 7787HA*1

Alternators

100% NEW Premium Alternator Made with the Highest Quality Components Available
One Year Warranty
12 Volt 200 Amp High Output Alternator MADE IN AMERICA
Ships Within 24 Hours M-F
Highest Quality Available

HIGH OUTPUT 200 Amp Ford Alternator 1996-2003

Fits:
FORD EXPLORER 00-97 4.0L(245) V6 w/SOHC, VIN E
FORD EXPLORER 01-96 5.0L(302) V8 Std, 130 Am
FORD EXPLORER 03-01 4.0L(245) V6 w/SOHC, VIN E
FORD EXPLORER 03-02 4.0L(245) V6 w/SOHC, VIN K
MERCURY MOUNTAINEER 00-98 4.0L(245) V6 Std, 130 Amp
MERCURY MOUNTAINEER 01-97 5.0L(302) V8 Std, 130 Amp
MERCURY MOUNTAINEER 03-01 4.0L(245) V6 Std, 130 Amp

Ford 3G conversion alternator with special serpentine pulley

Internally regulated Extra Heavy Duty Voltage Regulator

Simple OE hookup

Excellent output at idle

Dual internal fans

Highest quality components available designed to last.

FORD 1L2U-10300-AA, 1L2U-10300-AB, 1L2Z-10346-AB, 4G7U-10300-AA, 4G7Z-10346-AA, F77U-10300-AB, F77U-10300-AC, F77Z-10346-AB, XL2U-10300-AA, XL2Z-10346-AA

MOTORCRAFT GL-454, GL-613, GL-607,GL-363, GL-423

MOTORCRAFT VALUE SER GLV-8613-RM, GLV-8363-RM,GLV-8423-RM

OEM: Motorcraft, Ford
Voltage: 12 Volts
Amps: 200 Amps
Regulator Position: 4:00
Polarity: Negative
Output Stud Dimensions: M6-1.0
Approximate Weight: 14.2 lbs / 6.45 kg

Notes:
(3) Mounting Ears 14.0mm ID Unthreaded, 3-Blade Plug

For better performance, we recommend replacing your main charging wire with a larger 4 gauge cable to allow maximum charging current.

Sold outright with no core charge this High Output Alternator is what you want for high amp stereo systems or for extra reserve when you need it.
Output at engine idle is approximately 100 amps and maximum output of 200 amps is achieved at approximately 1200 engine rpm.
