Mag-Hytec

14-10.5-A

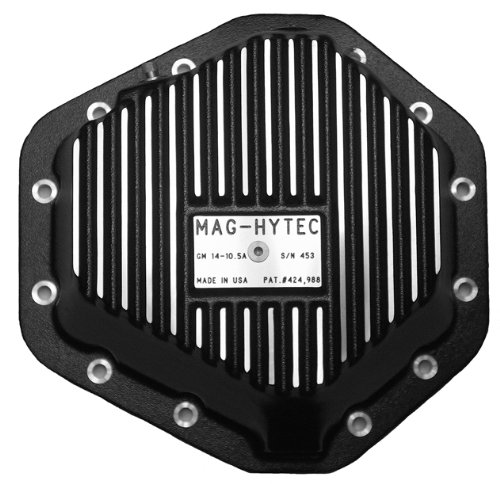

Mag-Hytec Rear Differential Cover Full floating Axle GM 1973 to present 2500 & 3500 not all w/ 14-10.5 axle

Differential Covers

Overall height 3 1/2" Capacity: 6 Quarts
Includes: Bolt kit, Drain Plug and Dip Stick.
Must check to confirm Full Floating Axle
Ring gear on passengers side of center
6 Liter Gas 2500 HD Must Visually confirm, some have #GM 14-9.5

Heavy Duty differential covers and transmission pans provide increased lubricant and cooling capacity for hard working recreational and service vehicles. Mag-Hytec covers and pans set your vehicle apart in both aesthetics and function - cast in A356-T6 aluminum and texture powder coated black with machined cooling fins. Magnetic drain plugs trap worn gear material promoting fluid integrity. Each unit is fitted with ARP 568 O-rings for superior sealing. All hardware is 303 stainless steel, in most applications no gasket or sealant is required, and all Mag-Hytec parts are covered by a lifetime limited warranty. Depend on Mag-Hytec when you're pulling a heavy load. Avoid costly reapirs - Extend the life of your Vehicle - Expand oil Capacity - Runs Cooler, Lasts Longer Average of double the fluid capacity Ease of Service The dipstick is knurled for quick removal, the flat is marked low/high to check lube level and a magnet, which acts as an open filter is in the lower end. The MS 7/8 - 14 THD port is large enough to use for filling. The magnet-filled drain plug is the same MS port as the dipstick. Both the dipstick and drain are O-ring sealed. The sending unit fitting is 1/8 pipe THD and shipped with a stainless pipe plug. The calibration plug is centered on the serial number plate and approximates the stock cover fill plug for factory fluid level. The O-ring is snapped into the inverted "V" groove for a positive seal without gasket or silicone. Plugs, cap screws and washers are stainless steel in most applications. Mag-Hytec manufactures the best covers and pans available today.
