Andrews

216826

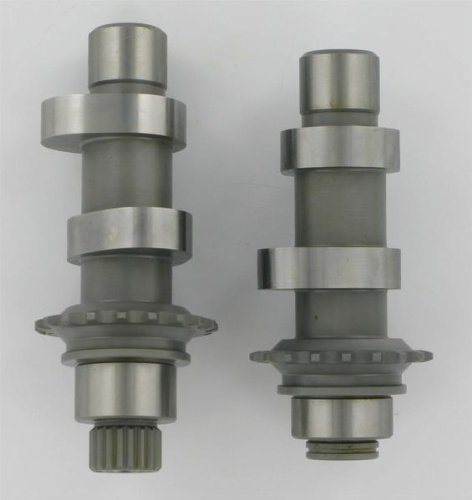

Andrews Camshaft Upgrade Kit 26N for Harley Twin Cam 99-06

SKU: 185303-1

Rebuild Kits

Street American Big Twin > ENGINE > Engine Other
Application: 99-06 BIG TWIN EXC 06 DYNA
Andrews Products 216826.

ANDREWS TWIN CAM 88 UPGRADE KIT

Eliminate Spring Powered Chain Adjusters

Engines Converted to 2007 Type Cams and Chain Drives Will Have Higher Output Due to Less Power Loss From Older Spring Powered Chain Tensioners. Instead of the Original Spring Adjusters, New Roller Cam Chains Use Engine Oil Pressure to Maintain Proper Chain Tension

Camshafts on All 1999-2006 Twin Cam 88 Engines (Excludes 2006 Dyna) Can Be Updated to New Style Roller Chain Drives

Designed for Use With Stock Harley Davidson Hydraulic Lifters

Installing 2007 Roller Cam Chains on Earlier Engines Requires Series N Andrews Camshafts. Stock Harley Davidson Parts Are Required: 2007 Cam Support Plate, 2007 or Later Oil Pump, Cam Sprockets and Chains and Both Hydraulic Chain Adjusters

Matching EZ-install Pushrods Kits Are Sold Separately. EZ-install Pushrods Do Not Require Removal of Gas Tanks or Rocker Boxes When Installing Bolt-In Camshafts

Cam Style: 26N

Bolt-In Cam 88-95" and Stock Compression Ratios

Great for 2-Up Touring, This Cam Will Add Torque and HP at Lower and Middle RPM Ranges (1800-5200 RPM)

Specification Readings Are as Follows, With Timing and Duration Measured at .053 Cam Lift.

Intake Timing Open (In Degrees): 11

Intake Timing Closed (In Degrees): 35

Intake Valve Duration (In Degrees): 226

Intake Lift: .490

Exhaust Timing Open (In Degrees): 41

Exhaust Timing Closed (In Degrees): 09

Exhaust Valve Duration (In Degrees): 230

Exhaust Lift: .490

Fits the Following Harley Davidson Models:

All TWIN CAM Models 1999-2006 (Excludes 06 FXD)

Please Note: The Image Displayed Is Representative of the Item, but May Vary Slightly Depending on Your Specific Model.
