Wiseco

PK1435

WISECO PISTON PK PK1435 9.9:1 KIT PK1435

SKU: tr-166191

Pistons

ATV > ENGINE > Pistons > PK KIT
Application: MULTIPLE SEE CATALOG

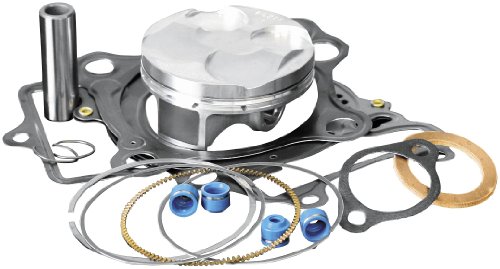

Wiseco Piston PK KIT PK1435.

Dedicated forging Light weight and superior strength Dome design Improved flame travel Chrome plated piston pin Reduced friction/scuff resistant Horizontal slot pin oiling Pressure seal groove Maximum ring seal Skirt coated Armor Glide Dedicated rings Maximum compression and oil control Race-Ready dome finish Smooth edges for improved combustion flow Note: All kits cover a single cylinder only All Wiseco 4-stroke top end kits include 1 piston, 1 ring set, 1 wristpin, 2 circlips and gaskets unless otherwise noted Wiseco top end kits are sold by application and bore size. To ensure you receive the correct kit for your application, you must know the standard bore size to make sure you are ordering either the standard or correct amount of oversize that you need. If you have any questions, please email us. Wiseco Part#: PK1435 Product Type: Piston Kits Specifications: Bore - Standard: 100.00mm Bore - Oversize: STD Displacement: 660cc Bore - Actual: 100.00mm Stroke: 84.00mm Compression Ratio - Actual: 9.9:1 Item Contents: 3937XS - 100.00MM RING SET 4966M10000 - Yam Raptor/Grizzly/Rhino 660 9.9:1 CR CW22 - ROUND WIRE PIN LOCKS 22MM (PAIR) Ring - Set S655 - Piston Pin - 22 x 14 x 57.15mm SW W6428 - Gasket Kit- Yam. Grizzly/Rhino 660 101mm
