Dinosaur Electronics

P-711

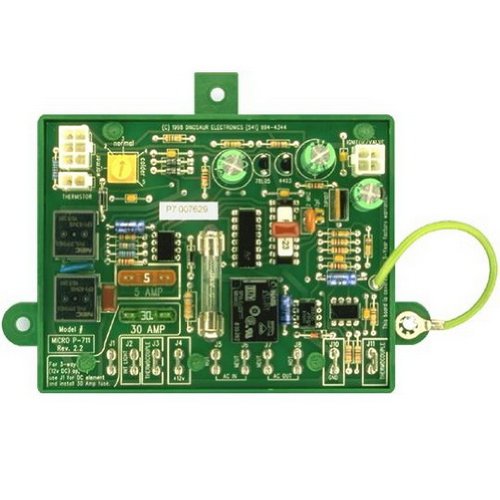

Dinosaur Electronics Circuit Board Dometic 2 Or 3 Way P711

EAN: 0670541577929

UPC: 670541577929

Electronics

Easy to install.
3 year warranty through Manufacturer.
replacement for most of Dometic's TM existing "Black box boards"

MICRO P-711 Built in surge protection. Protects from installation errors and the RV Power supply. Fuse protected on the 120 VAC circuit, 12 VDC supply and the DC element. Improved thermocouple circuit to eliminate recurring check light problem. Food saver feature keeps the refrigerator operating if the eyebrow board or communication link fails. Built in control allows temperature adjustment in the "Fixed" temperature Americana and Freedom series refrigerators. The temperature control also allows compensation for aging and production variations in those units that have the -1-2-3-4-5- temperature control on the operator panel. Built in microcontoller for highly reliable operation. Universal 2-way or 3-way (AC / DC / Gas) operation. Install optional fuse (provided) for 3-way operation. WORKS WITH THE FOLLOWING MODELS: NDR 1062, NDR 1272, NDR 1282, NDR 1492, RM 2551, RM 2554, RM 2607, RM 2611, RM 2612, RM 2620, RM 2652, RM 2807, RM 2811, RM 2812, RM 2820, RM 2825, RM 3607, RM 3662, RM 3663, RM 3807, RM 3862, RM 3863, RM 4872, RM 4873, RM 7030, RM 7732, RM 7832, S1521, S1531, S1621, S1631, S1821, S1831,
