Sinometer

BM3549

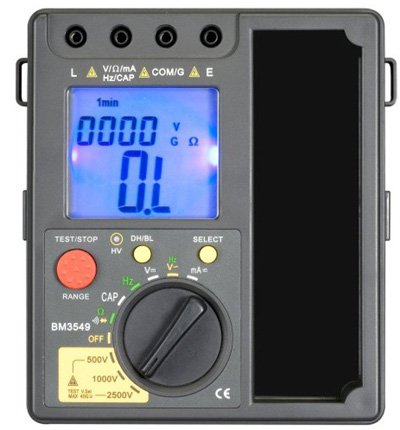

Sinometer BM3549 Digital Multimeter & Insulation Tester, 2500 V / 40 GOhm

EAN: 6934920395318

SKU: KTM00BM3549

Multimeters & Analyzers

Tests insulation up to 40 giga ohms
Testing voltage selectable, 500, 1,000 or 2,500 volts
Measures AC/DC V/A + Resistance + Capacitance + Frequency + Diode check + Continuity
Back-lit LCD display with a maximum reading of 1,999
1-year manufacturer's warranty

The Sinometer BM3549 combines a giga-ohm insulation tester and a digital multimeter seamlessly into one convenient device. As a multimeter, it can be used to measure AC/DC voltage & amperage, resistance, capacitance, frequency, diode test as well as continuity test. As a insulation tester, it can generate up to 2500 volts and test insulation anywhere from 250 KΩ to 40 GΩ. For you convenience and safety, when conducting insulation tester, the display not only shows the resistance, but also the voltage and time duration of the test. Another unique feature of this meter is its self-calibration function, when you enter the calibration mode, you can calibrate all the ranges easily and conveniently by pressing a few buttons.

Specification:

　 Insulation Resistance: 200k~40Gohm
Accuracy:200kohm~ 200Mohm ± 3%, 200Mohm ± 5% ~40Gohm ± 10%
Measuemeat Voltage:500V/1000V/2500V
short circuit current:1.5mA
Measuemeat time:1/2/10min
DC Voltage: 400mV/4V/40/400V ± 0.5 % 1000V ± 0.8%
AC Voltage: 4V/40V/400V 0.8%, 700V ± 1.0 %
AC Current: 40mA/400mA ± 1.0%
DC Current: 40mA/400mA ± 0.8%
Resistance: 400/4K/40K/400Kohm ± 0.8 4Mohm ± 1.0% 40Mohm ± 2.0%
Capacitance: 40nF/400nF/4μF/40μF ± 3.0%
Frequency: 40Hz/400Hz/4KHz/40KHz/400KHz/4MHz ± 0.5 %
Diodes Test
Continuity buzzer

Features:

Auto power off
Panel calibration
Back-lit LCD screen with dual display
Data hold
Measuring time display
Portable and ergonomic design
What's in the box:

BM3549 2-in-1 2500V insulation tester & DMM
AA batteries: 6
Test leads: 1 set
Alligator clips: 3
Carrying bag: 1
Shoulder strap: 1
User manual: 1
