DIYAutoTune

MS230-K

MegaSquirt 2 Programmable EFI Engine Management System PCB3.0 Kit by DIYAutoTune

Engine Management Systems

24 MHz HCS12 processor MegaSquirt 2
Ignition control
Built-in rev limiter, either 'fuel cut' or 'spark retard
Free tuning software allows for real time tuning and data logging for later analysis
Built in 2.5 bar MAP sensor reads up to 21 psi of boost

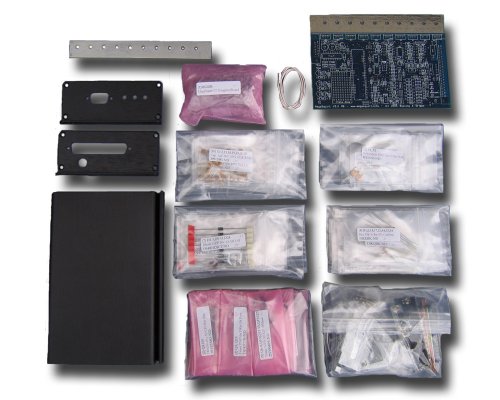

The MS230-K kit includes everything you will need to build your MegaSquirt-2. The genuine B&G partial kit with PCB3.0, the Bill Of Materials, the case, pre-machined endplates and heatsink bar, even the tube of heatsink compound and a bit of jumper wire is included. All you add is tools, solder, and time!

All 'Basic Components'

PWM Flyback Damping Circuit components

Hall Sensor/Coil(-) and VR Sensor Ignition Trigger Components

IGBT High Current Ignition Driver Components

Current Limiting Circuit Components

That's right, every single option to enable every single feature this great ECU has to offer.

The MegaSquirt EFI System is truly the dream Electronic Fuel Injection computer for the DIYer. MegaSquirt has been installed on thousands of engines from restored classics to daily drivers to full on race-cars. Turbo, supercharged, or NA the MegaSquirt can handle your fueling needs.

Available Source code means Endless Development

As with the original MegaSquirt EFI system the MegaSquirt 2 is an open project allowing anyone to customize the hardware and code to meet different needs. This firmware's featureset has grown hugely and continues to be refined. If there's a feature you're after, chances are MS2/Extra can do it!

Onboard MAP sensor for NA or boosted engines up to 21psi!

Ignition control (full spark timing advance control, dwell control, etc) for one coil/distributor (7 pin HEI for example) and Ford's EDIS systems

Use any injector - High or Low impedance.

Fuel control to 1 µsec (100 times more resolution than MegaSquirt-I)

Built-in rev limiter, either 'fuel cut' or 'spark retard'

So much more that we do not have room to list! Search for msextra to find full documentation
