Fuelab

56502-1

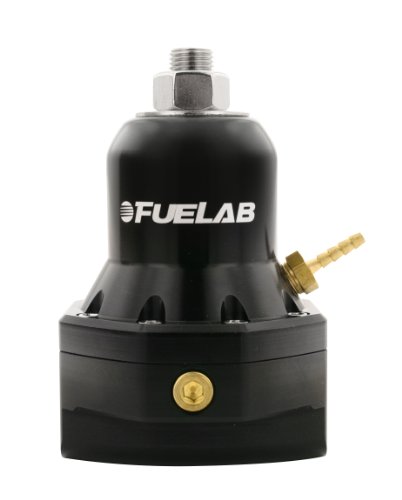

Fuelab 56502-1 Black 4-12 PSI Universal Carbureted High Flow Bypass Adjustable Fuel Pressure Regulator

EAN: 0845096001919

UPC: 845096001919

Pressure Regulators

Gasoline, diesel, methanol and ethanol fuel compatible
Billet aluminum with anodize per military MIL-A-8625, Type II
Fine thread pitch for precision pressure adjustment; 1/8 inches NPT pressure reference port with barbed fitting
No-creep soft seat; 1/8 inches NPT gauge port with plug for external pressure gauge
Versatile mounting brackets and stainless steel hardware

The fuel pressure regulators are true precision instruments designed to regulate fuel. These units feature an advanced poppet design for smooth regulating capability. This has also incorporated a no-creep soft seat that's methanol and E85 compatible and adjustable from 4-12 PSI. Utilizing a massive 1/2 inch return orifice and -10AN ports, these regulators hold no bounds. With the bypass capability over 5 GPM at 5 PSI, this new regulator can handle blow through carbureted applications well over 1800 HP and for EFI applications using belt driven fuel pumps even further (with a flattened regulation slope).
