Austenitex

SB001A.KIT024 (02131 / 16807)

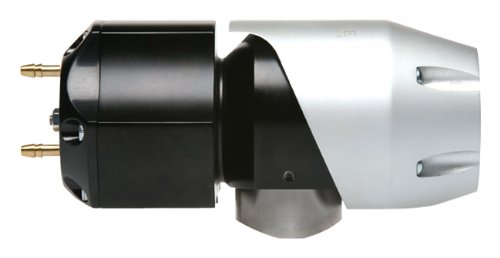

Synapse Synchronic Blow Off Valve Kit to replace HKS SSQ Style BOV's

EAN: 0858408004331

UPC: 858408004331

Blow Off Valves

Item ID: SYNBOVKIT-HKS
Style (Spec): Includes HKS SSQ Adapter Flange

This Universal Synchronic Blow Off Valve is the iconic Synchronic Blow Off Valve that has set the standard for impossibly fast response from a BOV/Diverter Valve, with response in 25 milliseconds or less. Best of all there is no diaphragm that could fail! Completely modular design, it can be installed as a vent to atmosphere BOV or recirculating DV. The Synapse Synchronic Blow Off Valve utilizes a fast-acting, patented (6,863,260) design that eliminates the diaphragm with a multi-tier piston actuator that equalizes the force required to open the valve at any boost pressure. The design is intended to significantly reduce or eliminate compressor surge and eliminates leaking by seating the valve more as boost pressure increases. Each assembly is pressure tested to 100 psi prior to leaving the factory. Interchangeable inlet and discharge flanges allow for various adapters and kits to be made for many popular applications.

By design, this is a pull-type valve, boost pressure keeps it closed - as boost pressure builds, there is more pressure seating the valve (keeping it closed), meaning no boost leaks upwards of 100+ psi of boost. The valve is designed to remain open under vacuum conditions. For maximum performance and reliability, Synapse recommends installing the Synchronic BOV in a re-circulating configuration with the discharge between the MAF sensor and turbocharger inlet.

Already have a Blow Off Valve installed? No problem! This universal package can be easily outfitted to mount on many of today's popular blow off valve weld flanges by utilizing Synchronic's interchangeable mounting flange system.

What's in the Box?
- (1) Synchronic BOV
- (2) 1/8 NPT Brass Air Fittings
- (1) 1.25" Recirc. Fitting
- (1) HKS SSQ Style Flange Adapter
