Hot Cams

4129-2

Hot Cams Stage 2 Camshaft for Yamaha Rhino 700R 08-1

EAN: 0172303775883

UPC: 172303775883

Camshafts

Stage 2 cam: Single-cam engine.
Good low-end torque gains across entire RPM range.
Note: Uses stock valve springs and rockers.
Uses stock auto-decompression mechanism.Technical Specifications:Exhaust duration (degrees at 1 mm): 243.00.Exhaust lift (mm): 8.60.Exhaust lobe center (degrees): 102.00.Exhaust valve lash (mm): 0.18.Intake duration (degrees at 1 mm): 253.50.Intake lift (mm): 9.60.Intake lobe center (degrees): 111.75.Intake valve lash (mm): 0.10.Note: Image is for display purposes only, actual part may vary based on fitment.

Stage 2: Single-Cam Engine

Good Low End Torque Gains Across Entire Rpm Range

Uses Stock Auto Decompression Mechanism, Valve Springs and Rockers

Intake:

Lift (Mm): 9.6

Intake Lobe Center (Degrees): 111.75

Duration (Degrees at 1mm): 253.50

Intake Valve Lash (Mm): 0.10

Exhaust:

Lift (Mm): 8.60

Exhaust Lobe Center (Degrees): 102.00

Duration (Degrees at 1mm): 243.00

Exhaust Valve Lash (Mm): 0.18

Note: For Inches, Divide Mm Values by 25.4

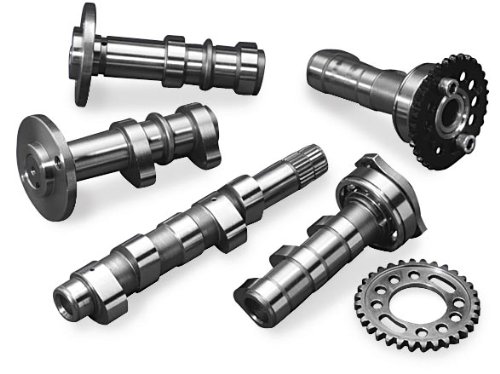

Please Note: The Image Displayed Is Representative of Hot Cams Camshafts, but Will Vary Depending on Your Specific Model. Do Not Purchase Based on Image Alone.
