Rareelectrical

50-804312T1

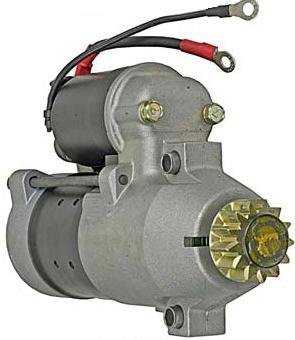

NEW MARINER YAMAHA OUTBOARD STARTER 75ELHPT 75ELPT 90ELHPT 90EXLPT F75TLR F80 F90 F100TLR F90TLR 90ELPT

Starters

100% Factory New Replacement
One Year Warranty
Complete With New 13 Tooth Drive
Ships within 24 hours M-F

MARINER OUTBRD. 75ELHPT 4-Stroke 01-00 84.6ci – 75 H.P. Hitachi System
MARINER OUTBRD. 75ELPT 4-Stroke 01-00 84.6ci – 75 H.P. Hitachi System
MARINER OUTBRD. 90ELHPT 4-Stroke 01-00 1.6L – 97.4ci – 90 H.P. Hitachi System
MARINER OUTBRD. 90ELPT 4-Stroke 01-00 1.6L – 97.4ci – 90 H.P. Hitachi System
MARINER OUTBRD. 90ELPT Coastal 4-Stroke 00 1.6L – 97.4ci – 90 H.P. Hitachi System
MARINER OUTBRD. 90EXLPT Saltwater 4-Stroke 01 1.6L – 97.4ci – 90 H.P. Hitachi System
MERCURY Marine 75ELHPT 4-Stroke 01-00 84.6ci – 75 H.P. Hitachi System
MERCURY Marine 75ELPT 4-Stroke 01-00 84.6ci – 75 H.P. Hitachi System
MERCURY Marine 90ELHPT 4-Stroke 01-00 1.6L – 97.4ci – 90 H.P. Hitachi System
MERCURY Marine 90ELPT 4-Stroke 01-00 1.6L – 97.4ci – 90 H.P. Hitachi System
MERCURY Marine 90ELPT Coastal 4-Stroke 01-00 1.6L – 97.4ci – 90 H.P. Hitachi System
MERCURY Marine 90EXLPT Saltwater 4-Stroke 01 1.6L – 97.4ci – 90 H.P. Hitachi System
YAMAHA OUTBOARD F100TLR 02-99
YAMAHA OUTBOARD F100TXR 02-99
YAMAHA OUTBOARD F75TLR 04-03
YAMAHA OUTBOARD F80TJR 02-01
YAMAHA OUTBOARD F80TLR 02-99
YAMAHA OUTBOARD F90TJR 04-03
YAMAHA OUTBOARD F90TLR 04-03

HITACHI S114-828B
MERCURY MARINE 50-804312T1
SIERRA MARINE 18-6425
YAMAHA 67F-81800-00, 67F-81800-01, 67F-81800-02

OEM: Hitachi, Mercury Marine, Yamaha
Type: PMGR
Voltage: 12 Volts
kW: 1.4 kW
Rotation: CCW
Teeth/Splines: 13 Teeth/Splines
Pinion/Splines OD: 39.9mm / 1.571in
Mounting Hole 1: 8.5 ID Unthreaded
Mounting Hole 2: 8.5 ID Unthreaded
Mounting Hole 3: 8.5 ID Unthreaded
Approximate Weight:7.86 lbs / 3.57 kg

Notes:
Battery Stud M8-1.25 Threaded, 130mm Ignition Lead, 100mm Battery Lead
