Neway Goodyear 1R12-092 Composite AirSpring AirBag HDA

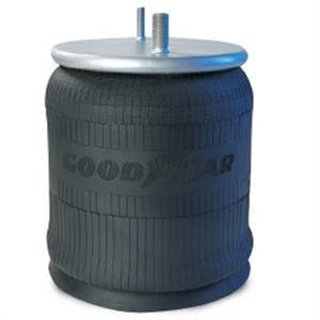

Goodyear # 1R12-092 Rolling Lobe Style Air Spring. Single Convolute. 12" Nominal Outside Working Diameter. 21.1" Extended Height. Top Measurements: 9" Diameter, 5.5" Between Mounting Studs, 1 Combination Stud Air Fitting Stud - 3/4-16; Air Fitting -1/4 NPTF and 1 Bolt or Stud 1/2-13 or 1/2-20. Bottom Measurements: 10.10" Diameter, 4 Tapped Hole on Top Retainers 3/8-16, on Pistons - 1/2-13. Flexmember: 566-24-3-038. Piston 566-20-7-080 (Composite). Firestone: 9082. Dayton: 352-9082. Triangle: 8310. Load Guard: SC2035. Granning: 2727. Navistar: 517559C9. Neway: 90557006, 90557027, 90557037, 90557054, 90557075. R&S Truck: 1090217. Reyco: 12882-01. Ridewell: 1003589082C. Silent Drive Susp., Inc.:201869. Toyo: TRL240-393. HDA: PMABG9082B. Hendrickson: B-2066, 36514-7. Hutchens: 9630-01. Kelderman Kwicklock/Todco: CP-3281, CP-5125, CP-5152. Taurus: AS506-9082. Fab Tek: 101828. Watson & Chalin: AS-0011. Same As 1R12-509(Steel Piston). ASA-92-8-164. SKU #1R12-092.
