uxcell

a11022500ux0026

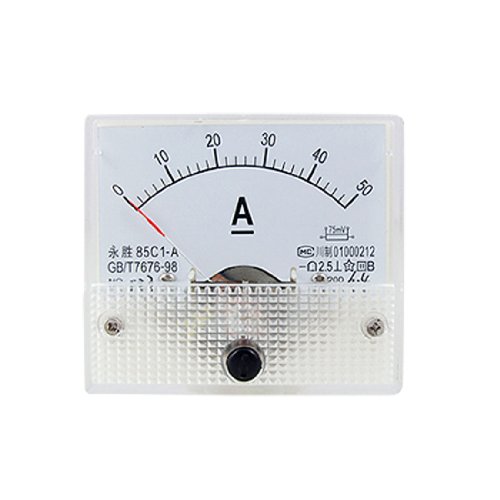

uxcell DMiotech 85C1 DC 0-50A Rectangle Analog Panel Ammeter Gauge Ampere Meter Tester

EAN: 0888309608574

UPC: 888309019974

Gauge Sets

Made of good quality plastic material and finished by good technology.
Measures current range of DC 0-50A with accuracy of Class 2.5.
Clear and easy to read scale and a button for fine tuning the dial.
Easy to install in electronic instrument and DC circuit.
Note: need a 75mV shunt(Here Not Included) so that you can successfully use this Analog Ammeter.

Description:
Note: need a 75mV shunt(Here Not Included) so that you can successfully use this Analog Ammeter.
Measures current range of DC 0-50A with accuracy of Class 2.5.
Clear and easy to read scale and a button for fine tuning the dial.

Specifications:
Product Name : Analog Ammeter
Model : 85C1
Measuring Current Range : DC 0-50A
Accuracy : Class 2.5
Meter Face Size(Approx) : 6.3 x 5.5 x 1cm / 2.5 x 2.2 x 0.39inch(L*W*T)
Thread Size : 0.37 x 0.83cm / 0.15 x 0.33inch(D*L)
Overall Depth : 5.77cm / 2.27inch
Net Weight : 62g(2.2oz)
Color : White

Package Include:
1 x Analog Amperemeter
Several Installing Parts
