Vantech

H2169W

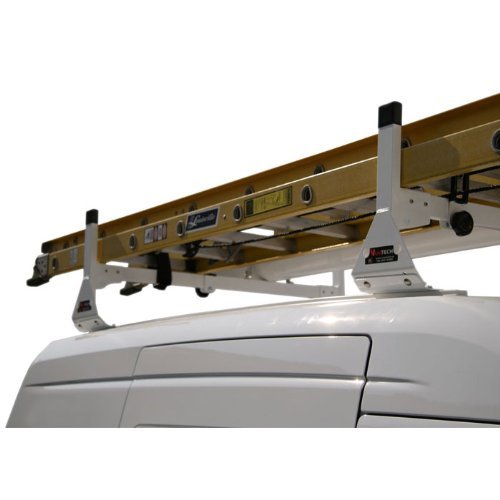

White Transit Connect H1 2 bar ladder roof rack High Profile 42 Bars Aluminum

Cargo Racks

Maximum load capacity 500lb (evenly distributed)
Mounting bases are 8" wide with 4 eyehooks for easy bungee or strap tie down.
Track increases weight capacity and weight distribution
Total height comes to 17.5in
Drilling is required for track installation

The Vantech H1 High Profile Steel system with tracks can hold up to 500 lb (evenly distributed). The track system fit onto the Transit Connects factory bolt (drilling required for extension). The Cross bars is 2" X 1" Reinforced extruded aluminum crossbars with internal structural support. The Cross bar is protected by non-slip rubber bar guard on top. The aluminum mounting upright is approx. 1/8" thick at the base. The mounting uprights are 8in wide at the base and 17in total height. The Base is welded complete onto the upright post for complete seal. There are 4x 1in eyehook per mounting upright. Rubber cap on the upright post prevents wind noise and water leakage. The system Includes 5" ladder stopper to prevent ladder from sliding forward, Ladder stoppers are galvanized and rubber dipped. The system also includes 5.5" ladder guide for easy bungee and tie-down. Ladder guide are galvanized and rubber dipped. Easy turn knob allows quick adjustments and removal of ladder stopper and ladder guide. Velcro straps secure ladders within seconds up to 75 lbs System powder coated for additional protection against rust. Total system height from base to endcap is 17in.
