Vantech

H2516B

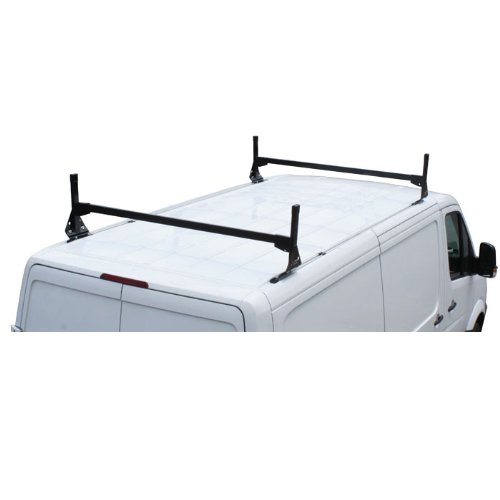

Black H1 2 Bar ladder roof rack High Profile, Low Top, 07-On Sprinter

Cargo Racks

A613 Crossbars are reinforced aluminum with channels for accessories. Max weight capacity 250 lbs. per bar
Galvanized accessories for additional protection against rusting
Installed onto roof of vehicle through tracks with 45 degree adaptors
Aluminum Mounting bases are 3mm thick, 8in wide base and 17.5" tall
Requires Sprinter roof tracks for install. Vantech part number R20, R21

The Vantech H1 aluminum 2 bar system can hold up 500 lbs. The Crossbars is 2" X 1" reinforced extruded aluminum with built-in channels. The Crossbar is protected by a non-slip rubber bar guard on top that is easily pressed into the channels. The aluminum mounting upright is approx. 1/8" thick at the base. The mounting uprights are 8in wide at the base and 17.5" total height. The Base is welded complete onto the upright post for complete seal. There are 4 x 1in eyehook per mounting upright There is absolutely No drilling required, secures with drip rail clamps. The drip rail clamps are 11 gauge galvanized steel/powder coated 2in x 8in dipped in rubber top and bottom. Rubber cap on the upright post prevents wind noise and water leakage. The system Includes 5" ladder stopper to prevent ladder from sliding forward, Ladder stoppers are galvanized and rubber dipped. The system also includes 5.5" ladder guide for easy bungee and tie-down. Ladder guide are galvanized and rubber dipped. Easy turn knob allows quick adjustments and removal of ladder stopper and ladder guide. Velcro straps secure ladders within seconds up to 75 lbs
