Rareelectrical

B004Q84VIY

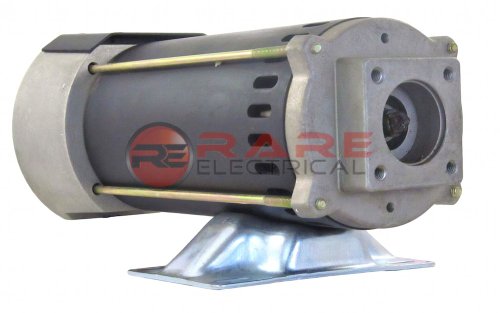

Haldex-barnes Aerial Scissor Lift Motor 106576 W-2273 4bd-02273 Sj-106576 220...

Starters

100% NEW and Made with the Highest Quality Components Available
Full One Year Warranty
Computer tested for consistent Quality and unsurpassed reliability
Ships within 24 Hours M-F
Meets or Exceeds Original Specifications

Applications:

Motor ? Pump
24 Volt, CW, Amplex (Male) Shaft, Permanent Magnet (PM)
Used On:
Aerial Lifts, Haldex-Barnes, Scissor Lifts

Dimensions:
4.5 in. Dia. Case, 14.2 in. OAL

Notes:
4hp, 3600rpm, 150A Full Load
Armature shaft is the amplex or chrysler coupler type with 1/4-20 threaded hole.

100% New
Permanent Magnet
Double ball bearings

Replaces Part Numbers:

SCOTT MOTORS 2200856, 2200945, 4BD-02273
SKYJACK 106576, 220856, SJ-106576
WESTERN MOTOR W-2273

OEM: Scott, J.S. Barnes
Voltage: 24
Amps: 150
Rotation: CW
Field Hsg OD: 114.3mm / 4.500in
Overall Length: 370mm / 14.567in
Shaft OD: 15mm / 0.591in
Shaft Notes: Chrysler Coupler Type
Terminal 1 Size: 5/16-24
Terminal 2 Size: 5/16-24
Approximate Weight: 31.4 lbs / 14.27 kg

Notes:
DE Housing Drilled for (4) 1/4-20 Mounting Holes, 4HP
