Ohlins

FGK 201

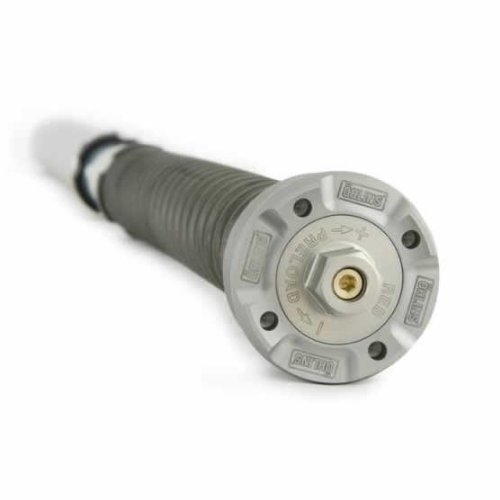

Ohlins Road and Track 30mm Front Fork Cartridge Kit FGK 201

SKU: PU-0413-0046

Body & Frame Parts

Race-developed and tested in World Superbike, World Supersport andAMA Superbike competition
Improved design features a fork cartridges that uses a sealed, one cylinder piston chamber that allows oil flow only through the shim stack on the cartridge piston when compressed
Kit uses a larger, 30mm diameter piston that flows more oil that allows for a wider range of adjustment
This provides immediate suspension response and generates optimal suspension oil pressure all the way through the fork damping sequence
All damping adjustment knobs are at the top of the fork caps for easy suspension tuning (compression on left fork leg, rebound on right leg; both have spring preload adjustment)

Race-developed and tested in World Superbike, World Supersport andAMA Superbike competition
Improved design features a fork cartridges that uses a sealed, one cylinder piston chamber that allows oil flow only through the shim stack on the cartridge piston when compressed
Kit uses a larger, 30mm diameter piston that flows more oil that allows for a wider range of adjustment
This provides immediate suspension response and generates optimal suspension oil pressure all the way through the fork damping sequence
All damping adjustment knobs are at the top of the fork caps for easy suspension tuning (compression on left fork leg, rebound on right leg; both have spring preload adjustment)
Easy to tune
For use with OEM fork tubes
Must purchase fork springs separately; springs sold each


This Item Fits the Following Applications:
2010 Yamaha YZF-R1 LE
2009-2011 Yamaha YZF-R1
