Beechhurst Inc.

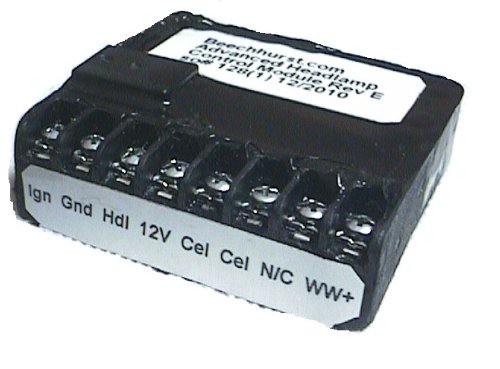

BI HM(A)12V-30A

Automatic Headlight Control Module

EAN: 0013964399943

UPC: 013964399943

Headlight Bulbs

Automaticly controled relay - 12 volts in - 12 volts out.
Light sensing by tiny photocell - adjustable threshold
"ON" is delayed to allow the vehicles charging system to be up and running
Adjustable turn off delay after ignition is switched off
Screw terminal connections and a windshield wiper input for "ON"

Advanced Headlight Control Module Features: There is no need to purchase an additional relay. Internal power relay can switch up to 35 amps(20A continuous,35A Max). Turns headlights on when dark. Turns headlamps off when light. No more dead batteries from forgetting to turn the lights off. Adjustable darkness trigger threshold. This can be set to turn on the headlamps from fully dark to heavy overcast. Darkness turn on delay: about 15 seconds No relay chatter or short cycling. Minimum latch up time: 1 1/2 minutes. Turns headlights on with windshield wipers. There is no lighting delay when activated by the wipers. Turn off delay: when the lights are on (photocell command) and the ignition is switched off, the headlights will remain on for about 25 seconds. Shutdown time is adjustable from ~ 8 seconds to ~ 2 minutes. Terminal strip connection. Need not be permanently wired in. Easily removed and reinstalled in other vehicles. Very tiny photocell with long leads. Can be placed almost anywhere for optimum operation and is easy to hide. Even longer leads are available, or you can attach your own extension. Polarity need not be observed.Photo-Cell Trigger All units have been tested and run to insure your complete satisfaction. Please note:installation in a modern vehicle WILL require professional services!
