UWS
TT50LT/PBLK

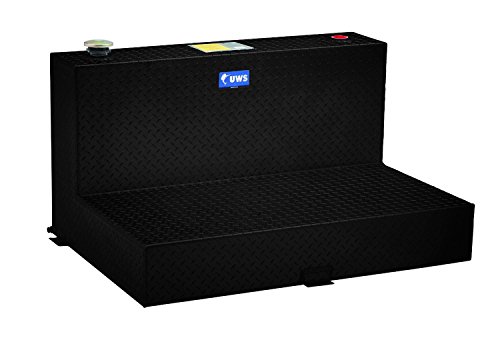

UWS TT-50-L-T/P-BLK Black 50 Gallon L-Shaped Transfer Tank
EAN: 0672078035224
UPC: 672078035224
Transfer Tanks
Heavy-Duty tank designed to transfer non-flammable liquid to on-site vehicles and equipment. Optional chests integrate with the tanks providing added storage without reducing truck bed space.
The UWS 50-gallon L-shaped transfer tank is a pickup truck based hauling solution for use in transporting non-potable water and non-flammable liquids,* including diesel fuel.** The tank's unique shape is designed to save space in truck beds and is compatible with additional UWS storage units (sold separately) that to fit precisely in the inner section of its L-shape. Additional features include: a vented tank cap, an additional threaded hole for installation of a pump (sold separately), durable aluminum construction with a black powder coat finish, internal baffles and integrated mounting flanges.

View larger
50 Gallons of Truck-based Storage for Non-flammable Liquids
The UWS TT-50-L-T/P 50-gallon L-shaped transfer tank is designed for transporting water and non-flammable liquids in pickup truck beds. The tank has a 50-gallon capacity, and is constructed of durable, corrosion-resistant .125" gauge aluminum with welded seams throughout. Its dimensions are 36" (l) x 32" (w) x 22" (h), with the tank measuring 8" thick along the horizontal and vertical planes of its L-shaped design. The L-shaped body is a space-saving feature that allows the tank to carry its full payload while minimally impacting the cargo capacity of the pickup it's used with. The tank is intended to sit within a user's compact, mid-size or full-size truck bed, flush against the back of the cab, and between its wheel wells. This minimizes wasted space at contact points within the truck bed, and allows for storage of items along the sides of the tank or even on top of it. Storage possibilities on top for the tank are further maximized by its compatibility with the the UWS product line of TCB-CB storage chests, which fit precisely within the open "L" section of the tank without extending past the overall dimensions of the transfer tank.

View larger

View larger

View larger
Ease of Installation and Use
The transfer tank has integrated mounting flanges oriented along its bottom edge. The flanges allow the tank to be bolted to the truck bed, which ensures that it will remain secure during transit (mounting hardware sold separately). Once installed, the tank is designed for ease of use. There are two threaded holes along the tank's top. One of these is for a commercial-grade tank cap (included), which serves to both secure the contents of the tank, while also relieving the build-up of pressure within it. Relief of pressure is important when the tank is used to transport diesel fuel, which is combustable under pressure. (The tank should never be connected to a vehicle's fuel system for use as an auxiliary tank, and it is not suitable for safe use in transporting gasoline) The second threaded hole is designed to accept a variety of pump types (sold separately), which can be used to conveniently dispense liquids at work sites. The internal structure of the tank contains baffles to minimize sloshing of liquid contents when a vehicle is in motion, while a drain plug at the driver's side allows for easy flushing of the tank.
Key Features
- Liquid storage tanks suitable for use with any size of pickup truck in transporting non-potable water, diesel fuel and other non-flammable liquids
- The L-shape of the tank allows for uncompromised additional storage in truck beds
- Commercial-grade vented cap is designed to relieve pressure buildup within the tank
- Additional threaded opening at the top of the tank provided for pump (sold separately)
- Internal baffles minimizes the sloshing of liquid
- Heavy-duty aluminum construction provides maximum protection and durability
- Integrated exterior mounting flanges
- Attractive and paintable black powder coat treadplate aluminum finish
- The tank is compatible with the UWS product line of TCB-CB storage chests
Specifications
- Dimensions: 36" (l) x 32" (w) x 22" (h) x 8" tank thickness
- Capacity: 50 gallons
- Construction: .125" gauge aluminum alloy
- Finish: Black powder coat finish with treadplate texture
- Integrated mounting flanges: Yes
- Drainage screw: Yes, driver's side
What's in the Box
- UWS black powder coat 50-gallon L-shaped aluminum transfer tank
- Vented tank cap
- User's manual and warranty information
One-year Limited Warranty
United Welding Services (UWS), Inc. warrants that the products it sells are free from defects in materials and workmanship under normal use and service for a period of one (1) year from the date of purchase to the original purchaser. This warranty does not cover defects arising from improper installation, inadequate maintenance, improper storage, shipping and handling, or use with or on unauthorized products or parts, or use for any other purpose than that which is herein stated.
About UWS
United Welding Services (UWS), a division of Thule vehicle accessories in North America, is headquartered in Perry FL. The company designs products for professional tradesmen and truck enthusiasts looking for a full range of tough and reliable storage carriers and truck accessories. All UWS products are manufactured at one of its three company owned factories in Florida, Georgia and Texas.
* The tank is not for use with gasoline.
** The tank should never be connected to a vehicle's fuel system as an auxiliary tank.
