MBENZ.6165.190190D

1961-1965 Mercedes Benz 190 190D 11 x 17 Color Wiring Diagrams

Clocks

11" x 17" - Bigger than other wiring diagrams
Wires are in ORIGINAL FACTORY Colors.
Laminated - No grease smudges on our diagrams.
100% Satisfaction Guarantee!
More than 20 years experience.

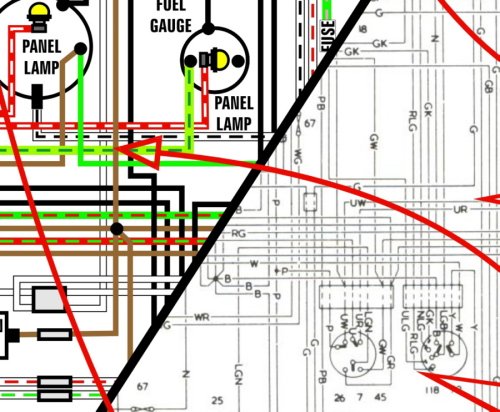

Color!ÿ There is nothing that makes a Wiring Diagram more useful that Colorizing it.ÿ The colors will match the colors that you are going to see in your harness.ÿ If the diagram says Light Green, you'll see a Light Green wire.ÿ Huge!ÿ They are printed on 11' x 17" paper and almost always go from edge to edge.ÿ Laminated!ÿ They are pretty much forever - just don't wrap them around a tailpipe.ÿ Accurate!ÿ I use Factory Diagrams (whenever possible) as a reference and review them meticulously for every detail.
