S&S Cycle

106-5234

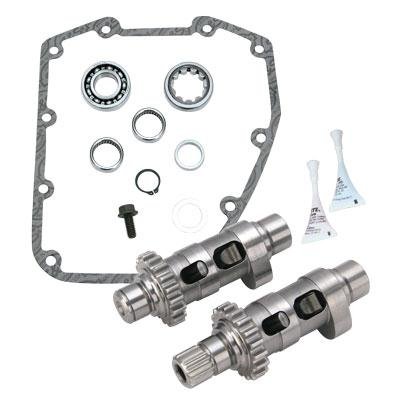

S&S Cycle 570CE Easy Start Chain Drive Camshaft Kit 106-5234

SKU: Z49-8451

Camshafts

Convert your Twin Cam to a gear drive
Kit includes cams, gears both inner and outer, gaskets,
bearings, bolts and heavy-duty bearing plate
Start any engine with a stock starter
How it works: Each of the 2 exhaust cam lobes are equipped with a spring loaded compression release lobe on the heel of the cam at the point where the valve would normally be fully closed. The lobe holds the exhaust valve open slightly at cranking speed. This releases some of the compression, making the engine much easier to crank. Once the engine starts, and rpm increases, the compression release lobe is centrifugally retracted and the engine runs normally, with full compression, and without an

Convert your Twin Cam to a gear drive
Kit includes cams, gears both inner and outer, gaskets,
bearings, bolts and heavy-duty bearing plate
How it works: Each of the 2 exhaust cam lobes are equipped with a spring loaded compression release lobe on the heel of the cam at the point where the valve would normally be fully closed. The lobe holds the exhaust valve open slightly at cranking speed. This releases some of the compression, making the engine much easier to crank. Once the engine starts, and rpm increases, the compression release lobe is centrifugally retracted and the engine runs normally, with full compression, and without any loss in performance. This allows a stock starter and battery to start nearly any engine.
Start any engine with a stock starter
Save your starter and battery
Reliable-tested for 10,000 starts and didnt even run the battery down
Automatic - no buttons to push
Available in chain and gear drive versions
Designed for 88in. to 95in. engines with compression ratios between 9:1 and 10:1
Intake Opening (degrees): 20
Intake Closing (degrees): 40
Exhaust Opening (degrees): 55
Exhaust Closing (degrees): 20
Intake Duration (degrees): 240
Exhaust Duration (degrees): 255
Valve Lift (in): .570
Intake Lift at TDC (in): .187
Exhaust Lift at TDC (in): .179


This Item Fits the Following Applications:
2013 Harley Davidson FXSB Breakout
2012-2013 Harley Davidson FLS Softail Slim
2012-2013 Harley Davidson FLD Switchback
2011-2013 Harley Davidson FXS Blackline
2011-2013 Harley Davidson FLTRU Road Glide Ultra
2010-2013 Harley Davidson FLTRX Road Glide Custom
2010-2013 Harley Davidson FLSTFB Fat Boy Lo
2010-2013 Harley Davidson FLHTK Electra Glide Ultra Limited
2010-2011 Harley Davidson FLHXXX Street Glide Trike
2009-2013 Harley Davidson FLHTCUTG Tri Glide Ultra Classic
2008-2013 Harley Davidson FXDF Fat Bob
2008-2011 Harley Davidso
