Pistons Wiseco 4811M10200

Wiseco

4811M10200

Wiseco 4811M10200 102.00mm 11:1 Compression 686cc ATV Piston Kit

EAN: 0182682923812

UPC: 182682923812

SKU: 4811M10200

Pistons


Wiseco's forged pistons are tougher and more durable than cast pistons, and will stand up to the abuse that high performance motorsport applications require
Piston kits contain one piston, rings, piston pin and piston pin circlips
Moly-coated piston skirts
4014GFX ring set
686cc

  • This Is a Replacement for a Single Piston, Does Not Replace Entire Set.
  • Dedicated Forging.
  • Light Weight and Superior Strength.
  • Dome Design.
  • Improved Flame Travel.
  • Includes Chrome Plated Piston Pin.
  • Horizontal Slot Pin Oiling.
  • Reduced Friction/scuff Resistant.
  • Pressure Seal Groove.
  • Maximum Ring Seal.
  • Skirt Coated - Armor Glide.
  • Dedicated Rings.
  • Maximum Compression and Oil Control.
  • Race-Ready Dome Finish.
  • Smooth Edges for Improved Combustion Flow.
  • Bore Size (Mm): 102 (Big Bore).
  • 11:1 Compression Ratio.


    • Fitment:
  • GRIZZLY 660 02-08
  • RHINO 660 05-07
  • RAPTOR 660 01-05

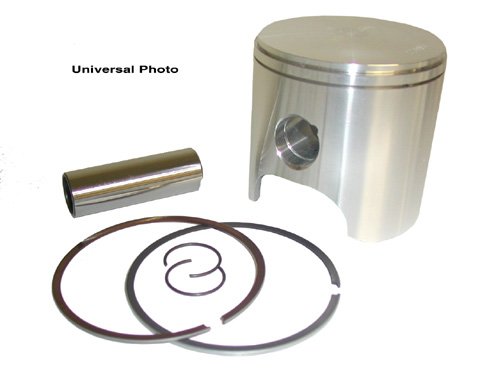

  • Please Note: The Image Displayed Is Representative of the Piston, However Circlips, Wristpins & Rings, as Well as the Specific Type of Piston Will Vary Based on Your Model.
