The Champion 12002 winch comes with 5 bonus accessories: Roller Fairlead, Mounting Channel, D-Shackle, Power In/Out Switch, and a 1.25" Hitch Bar.

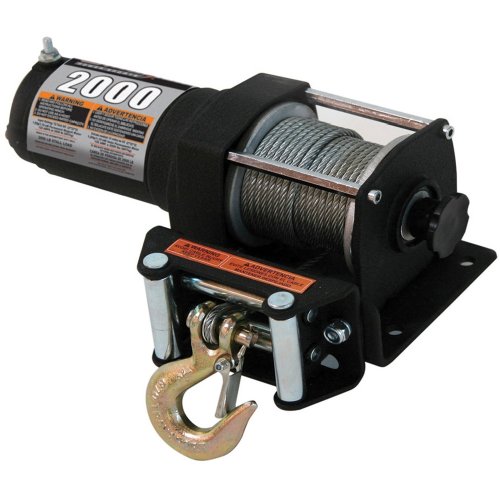

With a rated pull of up to 2000 lbs, and 49' of galvanized aircraft cable the Champion 12002 Winch is specially designed for reliability.

The Champion Power Equipment 12002 Winch Kit is a powerful and reliable tool for your ATV, UTV, or work vehicle. Its 2000lb rated pull and convenient mountable controller means you'll be prepared for work, play, or emergencies.

2000-Pound Rated Pull

The 12002 Winch Kit has a rated pull of up to 2000 pounds, suitable for intermittent use. The 5/32" x 49' galvanized aircraft cable is specially designed for reliability under load.

Roller Fairlead with Free Spooling Clutch

The roller fairlead acts to guide the wire rope onto the drum and minimizes damage to the wire rope from abrasion on the winch mount or bumper. The free spooling clutch allows the operator to manually disengage ("Out") the spooling drum from the gear train, letting the cable unspool freely. Engaging the clutch ("In") locks the winch into the gear system. These two systems help prevent wear and unnecessary strain on the cable, as well as protecting your vehicle.

Contactor Switch

The 12002 Winch Kit features a contactor switch for powering the rope in or out of your winch drum. The switch may be mounted to your handlebar, cargo rack, or anywhere else that's convenient on your ATV, or UTV (mount not included).

Standard Bolt Pattern for Easy Installation

This Champion Power Equipment 2,000lb winch is designed with a bolt pattern that is standard in this class of winch. Many winch mounting kits are available that utilize this bolt pattern for the most popular ATV's and UTV's, so you're sure to find the mounting kit that's right for your application.

Pre-Lubricated Assembly

All moving parts within the 12002 winch have been lubricated using high temperature lithium grease at the factory. No internal lubrication is required. You can lubricate the cable assembly periodically using a light penetrating oil as needed.

5-Bonus Accessories

The Champion 12002 Winch includes 5 bonus accessories to ensure safe and easy winching. Kit includes: Roller Fairlead, Flat-bed Mounting Channel, D-Shackle, Power In/Out Contactor Switch, and a 1.25" Hitch Bar with Pin.

Technical Specifications

• Rated Pull: 2,000 lb (907 kg)
• Gear Reduction Ratio: 153:1
• Motor: Permanent Magnet, 1.0 HP/(DC 12V)
• Duty Cycle: Intermittent
• Drum Size: 1.24" (D) x 2.88" (L), 31.5 mm (D) x 73 mm (L)
• Cable: 5/32" (D) x 49' (L), 4 mm (D) x 15 m (L)
• Weight: 19.5 lb. (8.8 kg)
• Height: 4.25 inches (108 mm)
• Width: 3.94 inches (100 mm)
• Length: 11.4 inches (290 mm)
• Bolt Pattern: 3.13 inches (79.5 mm)

Find the Right Champion Winch for your Needs

	Application	Rated Line Pulls	Motor	Cable
12001	ATV/UTV	2000 lbs	1.0 hp, 12V DC Permanent Magnet Motor	49' long x .16" thick
12002	ATV/UTV	2000 lbs	1.0 hp, 12V DC Series Wound Motor	49' long x .16" thick
13001	ATV/UTV	3000 lbs	1.34 hp, 12V DC Permanent Magnet Motor	49' long x .19" thick
14501	ATV/UTV	4500 lbs	1.6 hp, 12V DC Permanent Magnet Motor	52' long x .22" thick
18001	Truck/SUV	8000 lbs	3.6 hp, 12V DC Series Wound Motor	95' long x .31" thick
