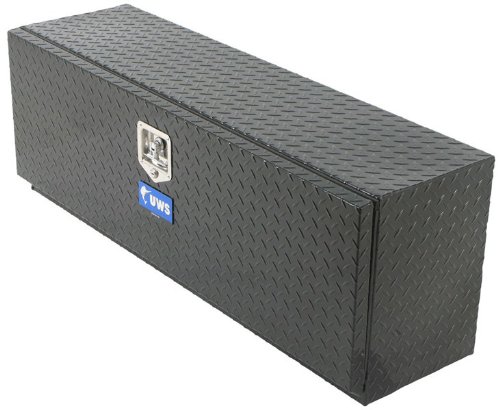

The UWS (United Welding Services) 48" topsider box is a rugged, mid-sized storage option designed for mounting on top of the bed rails of working trucks. The box contains a single 6.3 cubic foot storage compartment, with one outward facing side door, and is constructed of 0.063" aluminum with raised tread plate texture and a black powder coat finish. Additional features include: fully welded seams, a downward opening lid that is held at 90 degrees by aircraft cables, supports that attach to the bed floor, a stainless steel T-handle with lock, a dust seal and moisture channel.

6.3 cubic feet of topsider storage capacity for working trucks.
View larger

6.3 Cubic Feet of Topsider Storage for Truck Side Rails

Working trucks often share the common problem of insufficient space for tools and small storage needs due the vast majority of their usable space being dedicated to specialized work-specific uses and gear. The UWS product line of topsider storage boxes are designed to solve this problem by utilizing potential storage space atop bed rails where a box is able to be mounted.

A single, vertically-oriented door secured by a lockable stainless steel T-handle.
View larger

Convenient dimensions to fit most truck side rails.
View larger

Box legs included support the back ends of mounted boxes from inside truck beds.
View larger

The UWS TBTS-48-BLK black 48" topsider 1-door box measures 48" (l) x 13-1/4" (l) x 17" (h) and provides 6.3 cubic feet of storage space in a single compartment accessible through one side-oriented door. Following mounting of the box atop truck bed side rails (hardware sold separately), support legs (included) attach to the bottom, rear end of the box, and stretch down to the tuck bed to provide dependable support. The vertically-oriented door of the box utilizes a piano hinge on which it opens downward. Here it is held level at 90 degrees by two stainless steel aircraft cables, that together support up to 1,000 lbs. The box is constructed of 0.063" aluminum tread plate with fully welded seams throughout, and its exterior features an attractive black powder coat finish that serves as an ideal paintable undercoat for users who wish to alter the box color to match their vehicle. As further protection from the elements the box features a combination of vertical, heavy-duty MicroSeal stripping at contact points between the door and the box that help to seal out moisture, dust and dirt. It also has a built-in water channel extending from the box, underneath the closed lid, that diverts moisture away from the storage compartment in the event of a leak along the door seam. Finally, an integrated T-handle lock at the front of the box ensures dependable security for stowed items when users are away from their vehicle.

Key Features

• Mid-sized, single compartment storage box suitable for mounting on truck bed side rails
• One-piece heavy duty 0.063" aluminum design helps prevent sagging, leakage and minimizes denting
• Lid opens 90 degrees out from truck bed rails for easy loading and unloading of tools and equipment
• Stainless steel aircraft cable supports withstand up to 1,000 lbs. load when in the open position
• Heavy-duty MicroSeal stripping at door/box contact point helps seal out moisture, dust and dirt
• Water channel built into the box diverts moisture away from the storage compartment in the event of a leak along the door seam
• T-handle lock with included 2 keys for security of stowed items
• Black powder coat finish suitable for painting

Specifications

• Overall dimensions: 48" (l) x 13-1/4" (w) x 17" (h)
• Door opening: 43-1/2" (l) x 12" (h)
• Storage capacity: 6.3 cubic feet
• Doors: 1
• Box support legs included: Yes
• Construction: 0.063" aluminum tread plate, with black powder coat finish
• Lockable: Yes (2 keys included)
• Warranty: 1 Year limited warranty

What's in the Box

• UWS TBTS-48-BLK black 48" 1-door topsider box
• Two truck bed leg supports
• 2 lock keys
• User's manual and warranty information

One-year Limited Warranty

United Welding Services (UWS), Inc. warrants that the products it sells are free from defects in materials and workmanship under normal use and service for a period of one (1) year from the date of purchase to the original purchaser. This warranty does not cover defects arising from improper installation, inadequate maintenance, improper storage, shipping and handling, or use with or on unauthorized products or parts, or use for any other purpose than that which is herein stated.

About UWS

United Welding Services (UWS), a division of Thule vehicle accessories in North America, is headquartered in Perry, Florida. The company designs products for professional tradesmen and truck enthusiasts looking for a full range of tough and reliable storage carriers and truck accessories. All UWS products are manufactured at one of its three company owned factories in Florida, Georgia and Texas.
