Comp Cams

2612524

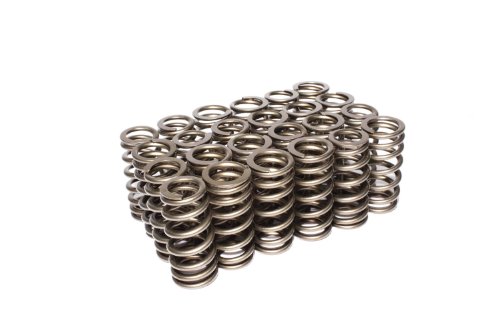

Competition Cams 26125-24 High Load Beehive Valve Springs for Ford 4.6L and 5.4L Modular 3 Valve Engines

EAN: 0036584144533

UPC: 036584144533

Springs

Seat pressure: 120 lbs. @ 1.640 inch, Open Pressure: 275 lbs. @ 1.040 inch
O.D.: 1.013 inch (Top) 1.101 inch (Bottom), I.D.: .650 inch (Top) .738 inch (Bottom)
Designed for Ford 4.6L and 5.4L Modular 3 Valve engines
.650 inch maximum lift, 1.101 inch O.D.
High load upgrade for part #26113-24

With a .650" maximum lift, these Beehive Valve Springs were designed for Ford 4.6L and 5.4L Modular 2 and 3 Valve engines and Duramax applications. COMP Cams Beehive Valve Springs deliver increased valve train stability and a much lighter valve train. This is achieved with less spring pressure for better valve control and reduced weight of both the spring and retainer. The unique Beehive shape handles valve train stress more efficiently to eliminate damaging harmonics and increases high RPM horsepower and durability. The oval/multi-arc wire shape places the maximum area of the wire at the point of highest stress to handle valve train stress more efficiently and allow better heat dissipation for longer life. Because of the unique Beehive design, the valve train can handle more RPM and more aggressive cam profiles.
