AL-KO

KD52930F421

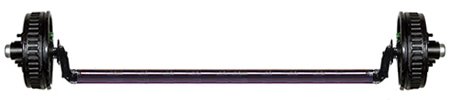

5,200 lb. 4 Drop Electric Brake Standard Spring Trailer Axle (93 Hub Face, 6-5.5 Bolt Circle)

Axles

5,200 lb Capacity, 6-5.5" Bolt Circle
Axle seats will come loose with axle and are required to be welded onto axle.
3" diameter x 3/16" wall round tubing.
12" x 2" Electric Drum Brakes (Some Assembly Required)
4" Drop from Center of Spindle to Center of Axle Shaft

Spindle: Type 42 with an inner journal dimension of 1 3/4" and an outer journal dimension of 1 1/4". Lubrication: Grease.
