AL-KO

KD35930F111

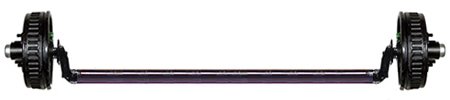

3,500 lb. 4 Drop Electric Brake Standard Spring Trailer Axle (93 Hub Face, 5-4.5 Bolt Circle)

Axles

3,500 lb Capacity, 5-4.5" Bolt Circle (2 5/8" center stud to center stud)
Axle seats will come loose with axle and are required to be welded onto axle.
2 3/8" diameter x 3/16" nominal wall round tubing.
10" x 2 1/4" electric brakes
4" Drop from Center of Spindle to Center of Axle Shaft

Spindle: Type 84 with an inner journal dimension of 1 3/8" and an outer journal dimension of 1 1/16": Lubrication: Grease.
