Crane Cams

130032

FB-260 H10 ENRG. CAM/LIFTERS

EAN: 0012988004512

UPC: 012988004512

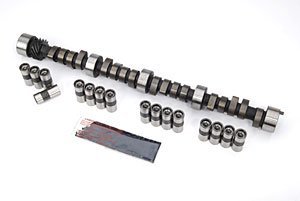

Cam & Lifter Kits

*Note: Firing Order 1-5-4-2-6-3-7-8, Ford 221 thru 302 camshafts can be used in 351 Windsor engines if the engine is changed to 221 thru 302 firing order (Ford 351W firing order is 1-3-7-2-6-5-4-8).

**Note: Many 1985-87 302ci engines, all 1988-97 302ci passenger car engines, all 1996-00 302ci truck engines, all 1985-95 302ci H.O. engines, and all 1994-97 351ci ''Windsor'' engines are equipped with hydraulic roller camshafts and lifters. Conventional hydraulic, mechanical, or roller lifters can be easily installed in these engines, providing the appropriate kit components are used.

***Note: To provide the most accurate valve adjustment on hydraulic lifter camshafts, the heads must be machined to accept screw-in studs (on engines not originally equipped). On engines equipped with bottleneck type studs, using 270-99768-16 positive locking nuts will permit valve adjustment. For engines equipped with pedestal mounted rocker arms and hydraulic lifters, excessive lifter preload can be easily remedied by using Crane's rocker arm pedestal shim kit 270-99170-1. Crane offers a pushrod guideplate and rocker arm stud conversion kit 270-36655-16 for street applications, enabling the 1977-00 255 and 302ci engines with pedestal mounted rockers to have adjustable rocker arms without cylinder head removal or machining.

SMOOTH IDLE, DAILY USAGE, FUEL ECONOMY, BRUTE LOW END TORQUE, 1600-2200 CRUISE RPM, 8.0 TO 9.5 COMPRESSION RATIO ADVISED.

Grind Number: 260 H10Operating Range:1200-4600 RPMDuration Advertised:260° Intake / 260° ExhaustDuration @ .050'' Lift:204° Intake / 204° ExhaustValve Lift w/1.6 Rockers:.456'' Intake / .456'' ExhaustLobe Separation Angle:110°Max Lift Angle:105° ATDC Intake / 115° BTDC ExhaustOpen/Close @.050'' Cam Lift:Intake - (3°) ATDC (opens) / 27° ABDC (closes)
Exhaust - 37° BBDC (opens) / (13°) BTDC...
