Comp Cams

2698616

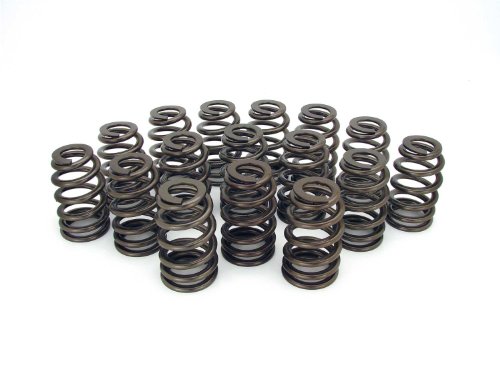

Competition Cams 26986-16 Beehive Valve Spring

EAN: 0036584126492

UPC: 036584126492

Springs

Seat pressure: 109 lbs. @ 1.800 inch, Open Pressure: 284 lbs. @ 1.175 inch
O.D.: 1.065 inch (Top) 1.415 inch (Bottom), I.D.: .650 inch (Top) 1.000 inch (Bottom)
Designed for hydraulic or solid flat tappet cams as well as small hydraulic roller cams
.575 inch maximum lift, 1.415 inch O.D.
No machining required on many cylinder heads

With a .575 inch maximum lift, these Beehive Valve Springs were designed for hydraulic or solid flat tappet as well as hydraulic roller cams. They work in a variety of small block engines. COMP Cams Beehive Valve Springs deliver increased valve train stability and a much lighter valve train. This is achieved with less spring pressure for better valve control and reduced weight of both the spring and retainer. The unique Beehive shape handles valve train stress more efficiently to eliminate damaging harmonics and increases high RPM horsepower and durability. The oval/multi-arc wire shape places the maximum area of the wire at the point of highest stress to handle valve train stress more efficiently and allow better heat dissipation for longer life. Because of the unique Beehive design, the valve train can handle more RPM and more aggressive cam profiles. This is the Beehive version of COMP Cams Part #986-16 Single Valve Springs.
