Pro Tek

SAB-20

Pro-Tek SAB-20 - Chain Adjuster Double Bolt Repair Kit

Chain Adjusters

Replaces seized and/or broken chain adjuster bolts
Kit allows you to replace broken bolts in approximately 10 minutes without having to remove the swingarm from the bike

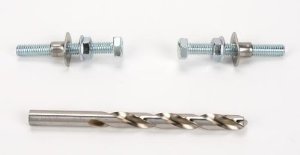

Comes with a high-speed hardened drill bit that is used to drill out broken bolt, then a stainless steel threaded insert block can be easily and permanently inserted
With threads replaced a new adjustment bolt and lock can be used
Kits available for one or two bolts

This Pro-tek SWING ARM BUDDY double repair kit (Pro-tek Part No. SAB-20) replaces 2 chain adjuster bolts after they seize and break off in the swing arms of most off road motorcycles. During normal cleaning and/or operating in moist environments, water enters and migrates to the rear of the swing arm causing the bolt to rust and seize. Consequently, at the next chain adjustment interval, the bolt can break off in the swing arm. This is becoming an increasingly common problem with today's motocross, street and enduro bikes. Rather than removing the swing arm from the bike, the SWING ARM BUDDY will allow the average rider to fix the broken stud in approximately 10 minutes without the expense of a machine shop, normally required for this repair. It comes in two distinct kits. A SAB-10 single kit includes one 3/8" extractor drill bit and one special thread fitting. A SAB-20 double kit includes one 3/8" extractor drill bit and two special thread fittings.
Offroad Applications
2004-2013 CRF50F 70F 80F
1985-2007 CR80R 85R/RB
2003-2014 CRF100F 150F 150R/RB 230F
1985-2007 CR125R 250R 500R
2004-2014 CRF250R/X
2002-2014 CRF450 450X
2000-2007 XR650R
1988-2013 KX65 80 85 100
1988-2005 KX125 500
2008-2013 KLX140/L
1988-2013 KX250
1988-2013 KX250F 450F
2003-2005 RM65 100
1986-2001 RM80
2002-2012 RM85/L
1989-2008 RM125 250
2004-2013 RMZ250 RMZ450
1987-2014 YZ80 85
1984-2014 YZ125/N
1985-2014 YZ250 250F
1998-1999 YZ400F
2000-2002 YZ426F 2003-2014 YZ450F

This kit also works on many Street Applications. See manufacturer listing for your bike.
