Baja Designs

12-1301-RD

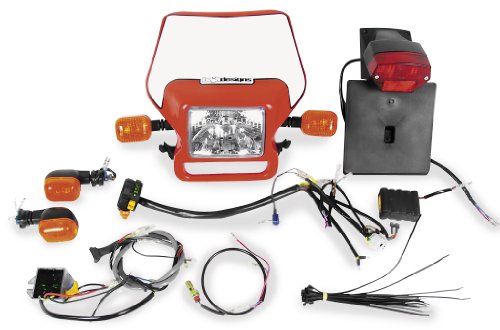

Baja Designs Dual Sport Kit - EZ Mount - Red 12-1301-RD

SKU: 134608-2

Bumpers

All Kits Include:
DOT Halogen Hi/Low Glass Lens Headlight
LED Taillight
DOT Turn Signals (flush mount available)
Horn

All Kits Include:
DOT Halogen Hi/Low Glass Lens Headlight
LED Taillight
DOT Turn Signals (flush mount available)
Horn
Ni-Cad Battery (9 ozs)keeps the lights working when the bike is off
Rectifier/Regulator (keeps the battery charged)
Wiring Harness
Switch Panel High Beam Indicator light, turn signal switch, horn, headlight and kill switch
Parts bag contains all necessary nuts, bolts, zip-ties, etc.
Available in all OEM colors including white and black
Detailed installation instructions
Some bikes do not require every component listed above
All states require DOT tires, some states have additional requirements such as Speedo/Odo, mirrors, etc. Please check state requirements.
All-new 2005 switch assembly features a modern style pusho-to-cancel turn signal button and an integrated LED high beam indicator. It now unplugs from the front wiring harness with a quick release connector eliminating the need to unplug any individual components to remove the switch.
EZ Mount Kit:
As many parts pre-mounted as possible. Similar to Quick Release Kit except no rear fender.


This Item Fits the Following Applications:
2009-2010 Kawasaki KLX250SF
2006-2013 Kawasaki KLX250S
2000-2004 Honda XR400R, Fitment Notes: Current Honda Red
2000-2004 Honda XR250R, Fitment Notes: Current Honda Red
1997-2008 Kawasaki KLX300R
1997-2005 Kawasaki KDX220R
1996-1999 Honda XR400R
1994-1996 Kawasaki KLX250R
1991-1996 Honda XR250L
1990-2000 Honda XR80R, Fitment Notes: Requires Stator rewind
1990-2000 Honda XR100R, Fitment Notes: Requires Stator rewind
1990-1999 Suzuki DR350
1986-1987 Yamaha TT350
1985-2000 Honda XR600R
1984-1999 Honda XR250R
1984-1986 Yamaha IT200
1983-2006 Kawasaki KDX200
1983-1986 Yamaha TT600
1983-1985 Honda XR350R
1983-1984 Yamaha IT490
1982-1993 Suzuki DR250
1981-2002 Honda XR200R
1981-1984 Honda XR500R
1980-1994
