Mile Marker

75-52000C/24

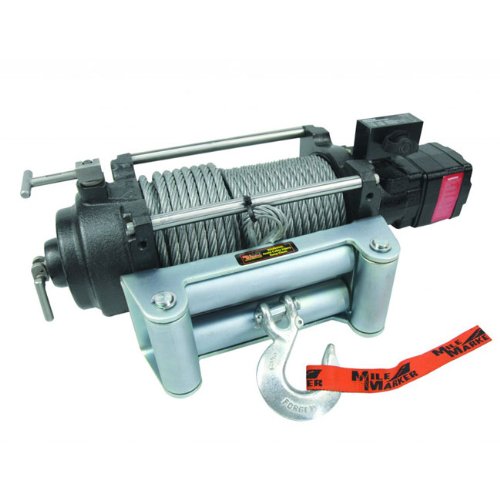

Mile Marker HI-Series Hydraulic Winch - 12,000-lb. Capacity, 24 Volt DC, Mode...

EAN: 0758626752024

UPC: 758626752024

Winches

Requires a vehicle specific 35-series vehicle adapter kit
2-speed motor
Integrated solenoid valve
Can be used under water
Corrosion resistant

The Mile Marker HI Series Hydraulic Winch is intended for permanent mounting in the front or rear of a vehicle. The solenoid control valve is integrated into the winch body, and therefore always remains in the same location as the winch itself. These systems include all necessary hoses, solenoid control valve, remote control, roller fairlead with fasteners, and winch cable. U.S.A. Gear Train Planetary, Volts 24, Gear Ratio 6 1, Mounting Hardware Included Yes, Battery Leads Yes, Clutch Freespooling, Braking Mechanical lock, Dimensions L x W x H in. 15 x 28 x 10, Line Speed FPM 31, Line Pull lbs. 12,000, Rope Type Galvanized aircraft cable, Mounting Bolt Pattern L x W in. 10 x 4 1/2, Switching Method Remote control, Fairlead Type Galvanized 4-way roller, Remote Length ft. 12, Rope Size L x dia. ft. x in. 100 x 3/8. Requires a vehicle specific 35-series vehicle adapter kit 2-speed motor Integrated solenoid valve Can be used under water Corrosion resistant Stainless steel tie bars and fasteners
