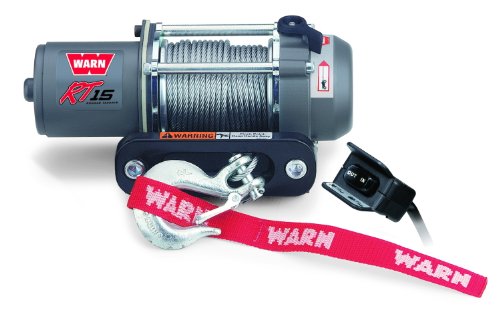

The RT15 is the perfect all-around winch for sport quads and small ATVs. Its 1,500-lb. capacity and 50 feet of wire rope turn compact ATVs into workhorses. Features include a 3-stage planetary geartrain, a patented disc brake for great control, a sealed motor to keep the elements out, and a handlebar-mounted mini-rocker switch for power in/power out. An efficient electrical system for less battery drain and a hawse fairlead round out the RT15's features.

This winch is recommended for use on smaller ATV’s or sports quads that are operating under 350cc.

Reliable winching performance for work or play

About Warn Industries

Founded in 1948, Warn Industries is the world’s most recognized brand in off-road products such as hub locks and vehicle recovery winches. The company designs, manufactures and markets a full line of off-road equipment and accessories that enhance the performance of four-wheel-drive and powersport vehicles.

Technical Specifications

• Capacity: 1500 lbs. (680 kgs)
• No-load Linespeed: 15 ft./min. (4.6m/min)
• Full-load Linespeed: 5 ft./min. (1.5 m/min)
• Series: Rugged Terrain
• Sealing: Motor
• Geartrain: Metal gears in plastic housing
• Rope: 50' Aircraft-grade wire, 5/32" diameter (15m, 4mm)
• Control: Sealed handlebar-mounted mini-rocker control
• Motor: 12V DC, 0.4hp permanent magnet, Sealed
• Gear Ratio: 103:1
• Clutch Control: Flip Tab
• Brake: patented disc brake
• Drum Diameter/Length: 1.5"/3.0"
• Fairlead: Hawse
• Recommended Battery: 12 Amp/hour minimum
• Battery Leads: 10 gauge
• Duty Cycle: Intermittent
• Winch Weight: 11.5 lbs (5.2 kgs.)
