Hot Rods

8187

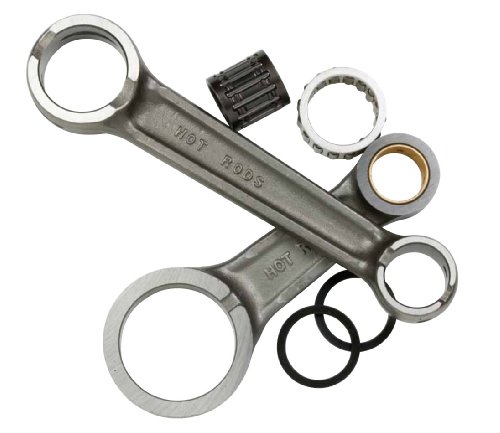

Hot Rods Connecting Rod Kit 8187

SKU: PU-0923-0050

Connecting Rods

NOTE: Only fits Liberty motors
Hot Rods crankpins are manufactured from hot-rolled ASTM 4115 and case hardened to 58-62 Rc
Hot Rods works directly with their bearing factorys engineering department to bring you the latest in caged needle roller bearing designs for high rpm
Uniquely designed big end uses strategically located side scalloping and vent slots to minimize high rpm bearing race distortion
Hot Rods are double forged to improve grain flow and maintain dimensional consistency

NOTE: Only fits Liberty motors
Hot Rods crankpins are manufactured from hot-rolled ASTM 4115 and case hardened to 58-62 Rc
Hot Rods works directly with their bearing factorys engineering department to bring you the latest in caged needle roller bearing designs for high rpm
Uniquely designed big end uses strategically located side scalloping and vent slots to minimize high rpm bearing race distortion
Hot Rods are double forged to improve grain flow and maintain dimensional consistency
Shot peened to eliminate surface stress risers and to smoothly blend the rod forgings radiuses together, which unlike hand-ground and polished rods produces more consistent dimensioning and surface finish for superior strength under heavy loads
By shot peening the connecting rods surface, fatigue durability is improved two times over a forged rod and over eight times when compared to polished rods
Double honing produces an ultra-round (50 millionths) bearing surface, producing a reliable high-rpm connecting rod
Small ends are double drilled to supply extra lubrication and cooling to the wrist pin bearing, which is especially important when the piston crown is close to the wrist pin bearing
Also feature silver-coated bronze phosphor thrust washer
Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers

This item fits the following applications:
2005 Polaris 800 Touring
2001-2005 Polaris 800 XC SP
2000-2005 Polaris 800 RMK
2004-2005 Polaris 800 SwitchBack
2004 Polaris 800 Classic
2003-2004 Polaris 800 Classic Touring
2004 Polaris 800 PRO XR
2003-2004 Polaris 800 XC
2003 Polaris 800 PRO X
2003 Polaris 800 SKS
2001 Polaris 800 RMK SP 144
2001 Polaris 800 RMK SP 151
2001 Polaris 800 LE
