Goodyear

2B9200

Goodyear 2B9-200 Air Spring

EAN: 0037256096310

UPC: 037256096310

Air Springs

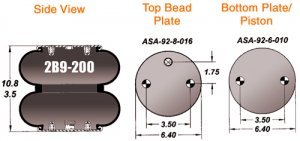

This is a bellows style Goodyear air spring. The bellows air springs have one, two, or three convolutions in the flexible member. This double convoluted air bag is typically found on lift springs or axles for trucks and trailers, as an air ride spring, and also as an actuator or insulator on industrial and commercial applications. The specifications will vary on your 2B9-200, but double convoluted Goodyear bags are found in crimped design as well as sleeve type bellows. They will offer similar characteristics and functionality but the sleeve type has the end retainers permanently attached by pinching the flexmember between the end retainers and external crimp rings. Specs Top Plate Hole/Stud: 3 Bottom Plate Hole/Stud: 2 Top Plate Diameter: 6.4 Bottom Plate Diameter: 6.4 Collapsed Height: 3.8 Flexmember: 578-92-3-202 Piston: - Piston Type: - Goodyear Trimmed: 2B9200 Crossovers Granning: 1371 Triangle Spring: 4320 Firestone: 6910 Conti Tech: 64267 R & S Truck: 1027405 Ridewell: 1003586910C Batco: 10-96910 Reyco: 23704-01 Hendrickson: 45843-3 Navistar/IHC: 554783C1 UCF/Impex: AB-2B9-200 Automann: ABSP2B12R-6910 Watson & Chalin: AS0001 Taurus: AS218-6910 Dallas Spring: AS6910 Sirco: AS-6910 Midland/Haldex: CS209200 Euclid/Meritor Aftermarket: E-FS6910 Conti Tech: FD200-19320 Euclid/Meritor Aftermarket: FS6910 BWP: M-3501 HD America: PMABG-6910B Ridewell: S4512C Leland: SC201 Leland: SC2011
