Clutch Masters

10031-HD00

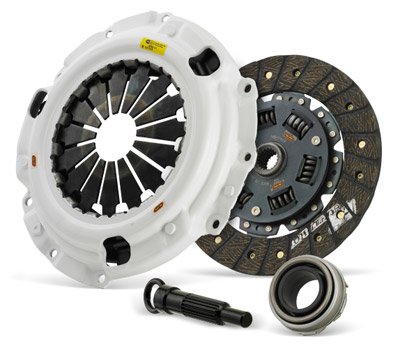

Clutch Masters Stage 1 Clutch Mazda RX8 1.3L 03-07

SKU: 10031-HD00

Complete Clutch Sets

1986 - 1992 Mazda RX-7 R Cyl 1.3L Turbo
Old Part # 10-031-HD00

The FX100 System uses the Power Plus I Pressure Plate with a custom heavy-duty Steel Back Organic friction disc. This clutch is engineered for heavy-duty street use. It is specifically designed for extended wear and additional clamping force for the enthusiast who has added an exhaust system, an intake system, up to 50hp NO2 upgrade, or other non-forced induction external bolt-ons. It features only slightly increased pedal pressure, longer life than stock, and normal clutch feel during engagement and disengagement for a very smooth operation.

CLUTCH KIT PART# GUIDE: #####-HDTZ-A

Pressure Plate Codes:
SD - Stock pressure plate
DD - Double diaphragm pressure plate
HD - Heavy duty pressure plate
HR - High rev pressure plate
TD - Twin Disc


Disc Codes:
00 - Sprung steel-backed organic disc
B4 - 4-puck rigid ceramic disc.
B5 - 5-puck rigid ceramic disc.
B6 - 6-puck rigid ceramic disc.
BL - Rigid full face ceramic disc.
0C - Sprung Organic/Ceramic disc.
C4 - 4-puck ceramic sprung disc.
C6 - 6-puck ceramic sprung disc.
CL - Sprung full face ceramic disc.
CF - Sprung ceramic/Fiber Tough disc.
CK - Sprung full face Kevlar/ceramic disc.
CT - Sprung segmented Kevlar/ceramic disc.
0F - Sprung Organic/Fiber Tough disc.
FF - Sprung Fiber Tough disc.
I4 - 4-puck rigid iron button disc.
I6 - 4-puck rigid iron button disc.
KV - Sprung full-face Kevlar disc.
SB - Sprung organic disc.
TZ - Sprung segmented Kevlar disc.
7S - 7.25 in. Twin disc (Street)
7R - 7.25 in. Twin disc (Race)
7H - 7.25 in. Twin disc (Race/Street)
8S - 8.50 in. Twin disc (Street)
8R - 8.50 in. Twin disc (Race)
8H - 8.50 in. Twin disc (Race/Street)


Foot Notes:
A - Aluminum flywheel included.
S - Steel flywheel included.
T - Fits Tremec transmission only.
H - Hydraulic slave cylinder included.
K - Upgrade kit including flywheel.
R - Rigid d
