HELLA

HL74806

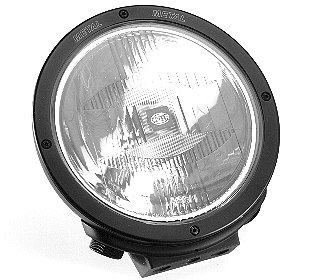

Hella Rallye 4000 Eurobeam Halogen H1 100W 12V with City Light Kit

Bulbs

Hella Designed, German Engineered Euro Halogen Driving Light
City Light Position Lamp
Rally Inspired Dual Knob Aiming Adjustment
Optional Mounting Plate for Horizantal Mounting Available at additional Cost
Highly Polished Aluminum Reflector with Optical Quality Glass Leans

The Rallye 4000 is the standard to which all other lamps are compared. Used by most of the top Rally and Desert Racers. The mounting base measures about 3 1/4 inches wide and "cradles" the shell in a 7" cup of metal for the most stable mounting systems available in the industry today. The two knurled knobs are the adjustment lock knobs. Loosen these and you can rotate the shell up, down and side-to-side for a full range of adjustment. Tighten them and the shell is snugged into a rubber gasket between the shell and the mounting cup - that lamp isn't going anywhere!The lamps have an integrated weather-proof plug for the electrics. The internal connections are already wired. Note also that there are three wires! The third wire is for an integrated parking lamp (Driving Lamp only). This is a European feature that has been carried to the US. The wiring harness was designed specifically for this lamp and uses a signal from the parking lights to trigger the city light, though it can be wired independently. The useful range of the Euro-beam is 2500 Ft. Kit includes two (2) lamps and a wiring harness
