ARP

1544203

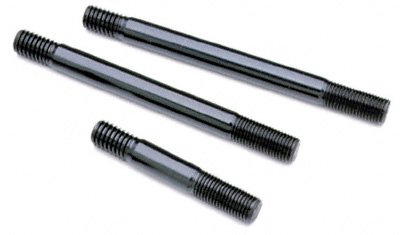

ARP 1544203 Pro Series Cylinder Head Studs, With 12-Point Style Nuts, For Select Ford Small Block Applications

EAN: 0672036003821

UPC: 672036003821

Main Bolts & Studs

The choice of many top professional engine builders for their all-out competition powerplants
Manufactured from a premium grade 8740 alloy that is heat-treated to 200,000 psi, which is considerably stronger than Grade 8 hardware
Kit comes complete with premium quality parallel ground washers and compact 12-point style nuts
1000% better fatigue strength than many other studs
Centerless ground to be as perfectly concentric as possible

ARP uses a premium grade 8740 alloy, which is rated far superior to "aircraft" quality, for their Pro Series cylinder head studs. Each stud is placed vertically in special racks and precisely heat-treated to 200,000 psi to ensure complete heat penetration. Then the studs are centerless ground to make them as close to perfectly concentric as possible, unlike lesser quality studs. Because ARP studs are manufactured to such exacting tolerances, you will note that gaskets and cylinder heads literally glide into position and are perfectly aligned -- something that won't happen with inferior quality head studs. By being thread rolled after heat-treat, these studs have about 1000% (that's ten times) better fatigue strength than those studs that are threaded prior to heat-treat (a very common industry practice). It costs a lot more to do it this way, because it's tough on tooling, but the results are well worth the extra effort. This cylinder head stud kit comes complete with premium quality parallel ground washers and compact 12-point style nuts for select Ford small block applications (351W with factory heads, M-6049-J302, SVO high port and M-6049-L302 GT-40 style, Edelbrock aluminum and Iron Dart with 1/2-13 cylinder block threads).
