Superwinch

1002

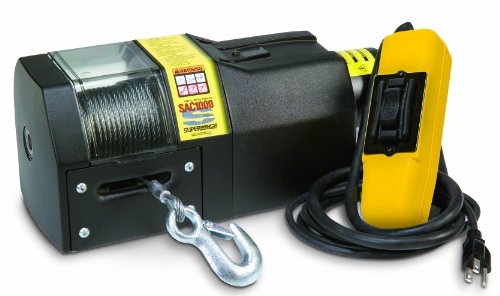

Superwinch 01002 SAC1000 120VAC winch, rated line pull 1,000 lb/454 kg

EAN: 0022705100205

UPC: 022705100205

Winches

Operates on standard house current: 115-Volts AC, 50/60 hz with 1,000-lb capacity
Wire rope measures: 50' x 3/16"
Dimensions measure: 15.25"l. x 5.9"d. x 6"h; 33-lbs
Includes roller fairlead for smooth, frictionless winching
5 to 1 Safety Factor

Superwinch SAC1000 Series Winch is designed to be compact and dependable for all utility needs. It can also be used effIciently at workshops, trailers and for jobs around the house. This winch features mechanical and dynamic braking. It has a 6-foot handheld pendant remote and hawse fairlead. This winch is engineered with high-efficiency low amp draw motor and protected circuit breaker. It is pre-mounted and sealed to protect from elements.
The Superwinch SAC1000 Front-Mount AC Winch is designed for fast-and-easy installation, and can be used for those winching applications where AC power is the only option. This winch has been designed to run off of a standard household current and is the perfect solution for your light-duty winching needs. The 115V AC 50/60 hz winch features a 0.6 horsepower electric motor, and a 6-foot hand-held pendant switch with a interlocking push button station. A wrap spring brake will hold a 1,000-pound load on the first wrap.

This unit can be mounted in either a horizontal or vertical position on a wall or other suitable support. This winch also comes with a 5:1 Safety Factor. The Superwinch features a wire rope tensioning plate, and full load mechanical and dynamic brake. It also includes a hawse or roller fairlead.

Superwinch Brand: Power when you need it, where you need it.

Multiple Uses: Used for any light-duty applications where AC power is the only option.

Standard Features    Power In and Power Out    Wire Rope Tensioning Plate    6' (1.82m) Control Pendant    Operates on Standard House Current    Handsaver    Full Load Mechanical and Dynamic Brake    Hawse or Roller Fairlead   Performance 115VAC (1st layer on drum)    Line Pull    lbs./kg Line Speed FPM (m/m) Motor Amps                   0 13.8 (4.2)   4.3       250 (113) 12.0 (3.6)   6.0       500 (227) 10.9 (3.3)   7.2       750 (340) 10.0 (3.0)   8.2    1,000 (454)   9.2 (2.8) 10.0   Specifications    Rated Line Pull (Single Line) 1,000 lb. (454 kg)    Motor 0.6 horsepower    Gearing Differential Planetary    Gear Ratio 159:1    Braking Mechanical and Dynamic    Wire Rope 3/16" x 50' (4.8mm x 15.2m)    Dimensions 15.25"l. x. 5.9"d. x 6"h (387mm l. x 150mm d. x 152mm h.)    Drum Diameter 1.625" (41.3mm)    Drum Length 3" (76.2mm)    Weight 33 lb. (15 kg)
