The TracRac 29056 triple TracVan rack is a convenient, and effective way to maximize the carrying capacity of vans by moving large loads up onto the roof. The rack consists of three crossbar elements that attach to vehicles' rain gutters without having to drill any holes or alter the exterior of the van. Load stops are included for securing items on top of the rails. Additional features include: an upper load rating of 750 lbs., rugged T-6 aluminum construction, wind and noise resistant construction and compatibility with vans with differing rain gutter and roof configurations.

A three bar rack system with a 750 lb. Load rating specifically designed for vans.
View larger

Expand the Carrying Capacity of Vans by Moving Loads onto the Roof

The TracRac triple TracVan rack is an effective and easy-to-use rack system designed specifically for vans hauling heavy and/or long loads. The rack has a carrying capacity of of 750 lbs. Split between its three 65" crossbars, and supported by four rain gutter corner mounts. Crossbars are constructed of 6063 T-6 aluminum and are forged with an internal web structure. The exterior of the bars have a dual stage powder coat. Together this ensures the bars' durability and corrosion resistance. Crossbars are elliptical in shape and have an airfoil "trip strip" at their front ends. This makes them more aerodynamic, which minimizes possible impacts to gas mileage, and reduces wind noise that is commonly experienced in vehicles with racks. The rack system contains four load stop attachments that install into the T-slot grooves of crossbars. The right angles of load stops and their integrated tie-down loops are designed to provide adjustable contact points along the crossbars for transporting long work-related items such as ladders, lumber and pipe/tube carriers. Each load stop has a rugged quick-release knob that allows it to be moved at will, and securely tightened down in seconds. The elliptical shape of TracVan crossbars, along with their integrated T-slots and load stop tie-downs make them suitable for use in transporting a wide range of recreational items, such as canoes, kayaks, cargo boxes, and so on.

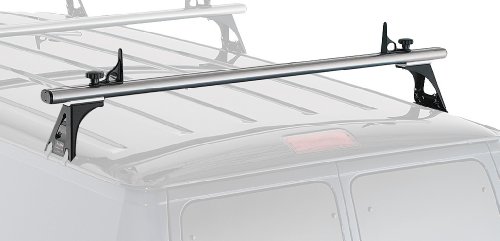

Aerodynamic elliptical crossbars with durable load stop tie-downs.
View larger

Simple, damage-free gutter installation with corner mounts and J-hooks (one of three shown).
View larger

Simple, Damage-free Installation

The TracRac triple TracVan rack features damage-free installation that does not require the drilling of any holes, or the altering of vehicle roofs. The rack's three crossbars are supported by the six corner support brackets (included). Assembled crossbar support sections are spaced at the appropriate distance to each other along the van's rain gutters, and secured using a combination of J-hooks, and mounting hardware (all included). The sloping height of vans with rounded roofs is compensated for with shims inserted between the crossbars and corner support brackets of front and back rack supports, ensuring a level overall rack surface. Installation is intended to be semi-permanent, holding fast at the installed configuration, but easily altered as needed. Mounting hardware shipped with the TracRac triple TracVan includes gutter span extenders which allow the rack to be installed on putty-filled rain gutters without damaging the moisture-sealing properties of the putty.

Key Features

• Three rack supports attach and detach to van rain gutters allowing long items to be placed on the roof
• Damage-free installation requires no drilling or altering of van structure
• Elliptical-shaped crossbars minimize wind resistance
• Airfoil "trip strip" on the front of crossbars for reduced wind noise
• Internal web structure of crossbars designed to further reinforce strength when hauling heavy loads
• No rust aluminum construction with dual stage powder coating to resist wear and match the finish quality of your van
• Crossbar load stop tie-downs secure lumber, ladders, building materials, canoe etc.
• T-slot channels in crossbars can also be utilized to carry sport equipment (accessories not included)
• Optional gutter spans for installation on vans with putty-filled gutters
• Shim sections provided to ensure a level rack when installed on rounded van roofs

Specifications

• Number of crossbars: 3
• Carrying capacity: 750 lbs.
• Crossbar length: 65"
• Cross bar T-Slot dimensions: .386" (slot opening width) x .587" (slot base width) x .275" (slot height)
• Rack weight: 52 lbs.
• Rack attachment method: Rain gutter corner mounts with J-hook connectors
• Core construction materials: 6063 T-6 aluminum with dual stage powder coat

What's in the Box

• Three aluminum crossbar racks
• Six aluminum rain gutter corner mounts with replaceable/removable rubber padding strips
• Twelve J-hook connectors with neoprene pads
• Six load stop attachments
• Gutter span extenders (for rack support installation over rain gutter putty)
• Shim hardware (for leveling rack supports on rounded roofs)
• All necessary mounting hardware
• User's manual and warranty information

Limited Lifetime Warranty

TracRac Incorporated will warranty all TracRac truck and van racks manufactured by TracRac Incorporated during the time that an original retail purchaser owns the product. No warranty is given for defects resulting from conditions beyond TracRac's control including, but not limited to, misuse, overloading, or failure to assemble, install or use the product in accordance with TracRac's written instructions, or guidelines included with the product or made available to the purchaser. This warranty terminates if a purchaser transfers the product to any other person.

About TracRac

TracRac is division of the Thule Group. Based Fall River, MA., TracRac produces a full line of cargo management systems for pickup trucks and vans. Manufactured and assembled in USA, TracRac products are functional and packed with unique features that enable custom configurations for professional tradesmen.
