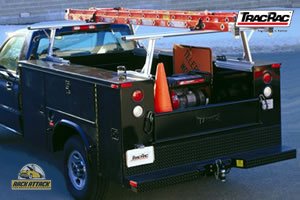

The TracRac 28101 22" UtilityRac is a sliding rack system specifically designed for use on utility trucks. The UtilityRac utilizes two aluminum rack supports that slide along tracks in 24" sections of base rail that are permanently installed into the body of the truck. The system allows for expansion of sliding distances with additional rail sections. Load stops are included for securing items on top of the crossbars. Additional features include: support for accessories (sold separately) along the inside track of the base rails, an upper load rating of 1,000 lbs., and wind and noise resistant construction.

A two bar rack system specifically designed utility trucks.
View larger

The Original Sliding Rack Solution for Utility Vehicles

The TracRac 28100 UtilityRac series is TracRac's original sliding rack system for utility trucks. The 28101 model is the smaller of the two available offerings in the series, with rack supports measuring 22" high and a load capacity of 1,000 lbs. Designed to save space in working utility vehicles, the UtilityRac consists of two rack support structures and four base rail segments. The base rail segments are 24" long and oriented to overlap the top interior corners of utility truck side rails. Both sides of base rails contain tracks running their length. UtilityRac rack crossbar supports slide within the top tracks of the rail, while the inner track of the base rail is used to attach accessories (sold separately) to the system. Each base rail segment is permanently installed by drilling a few holes in truck rails and securing them using mounting hardware (included). The four base segments that ship with the rack are intended for installation in the far corners of utility truck beds. This results in easy installation and removal of support sections, and the broadest rack platform possible. Users requiring extended sliding functionality for rack supports and accessories can add additional base rails, feasibly connecting the original four base rails segments and creating seamless tracks that allow rack elements and accessories to slide the length of the truck bed.

A sliding rail track system that can be extended the length of the vehicle bed.
View larger

Aerodynamic elliptical crossbars with durable load stop tie-downs.
View larger

Quick, easy permanent mounting with an electric drill, and a few hand tools.
View larger

The crossbars of the UtilityRac rest on support assemblies with integrated saddles at their tops that cradle the crossbars, and broad bases at the bottom that slide along the base rails. Angled braces are also present at the top and bottom of these sections to add further support. Crossbars are constructed of 6063 T-6 aluminum with an exterior a dual stage powder coat that ensure durability and corrosion resistance. The bars are elliptical in shape, and have an airfoil "trip strip" at their front ends. This makes them more aerodynamic than square or round crossbars, which minimizes possible impacts to gas mileage, and reduces wind noise that is commonly experienced in vehicles with racks. Quick release knobs along the base of support sections allow for slip-free placement along base rails. Bolts at the end of base rails add an extra level safety, ensuring that sliding elements will not detach from base rails, even if they are not completely tightened down with quick release knobs.

Versatile Load Stop tie-downs for Securing Loads

The UtilityRac system contains four load stop attachments that install into the T-slot grooves of its crossbars. The right angles of load stops and their integrated tie-down loops are designed to provide adjustable contact points along the crossbars' length for transporting long work-related item such as ladders, lumber and pipe/tube carriers. Each load stop has a rugged quick-release knob that allows it to be moved at will, and securely tightened down in seconds. The elliptical shape of UtilityRac crossbars and their compatibility with a range of TracRac and third-party hauling accessories also allow them to be used to transport a variety of recreational items, such as canoes, kayaks, cargo boxes, and so on.

Key Features

• TracRac's original aluminum sliding truck rack system for utility vehicles
• A modular base rail system arranged in 24" sections allows for customization and expansion of base rail sliding tracks
• 1,000 lb. load capacity
• Aerodynamic and quiet (features wind deflectors to reduce noise)
• Lightweight construction (65 lbs.)
• No rust aluminum construction with dual powder coating to resist wear and match the finish quality of your truck

Specifications

• Number of crossbars: 2
• Carrying capacity: 1,000 lbs.
• Rack height: 22"
• Cross bar T-Slot dimensions: .386" (slot opening width) x .587" (slot base width) x .275" (slot height)
• Rack weight: 65 lbs.
• Rack attachment method: Sliding rail system
• Individual rail segment lengths: 24"
• Core construction materials: 6063 T-6 aluminum with dual stage powder coat

What's in the Box

• Two aluminum crossbars
• Four support legs with integrated saddles and bases
• Four quick release clamping knobs
• Four support braces
• Four 24" double-T anodized aluminum slide tracks
• Four load stop tie-downs with quick release tightening knobs
• All necessary mounting hardware
• User's manual and warranty information

Limited Lifetime Warranty

TracRac Incorporated will warranty all TracRac truck and van racks manufactured by TracRac Incorporated during the time that an original retail purchaser owns the product. No warranty is given for defects resulting from conditions beyond TracRac's control including, but not limited to, misuse, overloading, or failure to assemble, install or use the product in accordance with TracRac's written instructions, or guidelines included with the product or made available to the purchaser. This warranty terminates if a purchaser transfers the product to any other person.

About TracRac

TracRac is division of the Thule Group. Based Fall River, MA., TracRac produces a full line of cargo management systems for pickup trucks and vans. Manufactured and assembled in USA, TracRac products are functional and packed with unique features that enable custom configurations for professional tradesmen.
