Edelbrock

77189

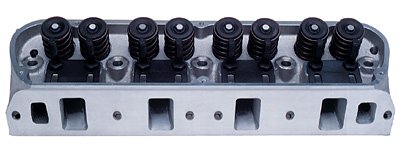

Edelbrock 77189 Victor Junior Cylinder Head

EAN: 0085347771899

UPC: 085347771899

Cylinder Heads

Made of aluminum with a natural finish
Rocker arm nut thread size is 7/16-20
Guide plate pushrod size is 5/16
Includes intake valves, exhaust valve, valve springs, retainers, locks, guide plate and valve stem seals
Does not include damper spring, rocker arms, nuts and drilled steam holes

The Edelbrock Victor Junior Cylinder Head is designed specifically for maximum horsepower and ideal for many types of competition and ultra-high performance street machines. This head features reinforced rocker stud bosses, high-flow intake/exhaust ports and specially contoured combustion chambers. The extra thick deck surfaces provide maximum head gasket retention with high-compression ratios. It is ideal for those who desire affordable heads that make maximum power. This cylinder head features CNC gasket-matched port entries/exits with blended valve bowls. Standard hardware is accepted and most are available in bare and assembled versions. The intake runner volume is 210cc; the exhaust runner volume is 75cc and the combustion chamber volume is 60cc. The diameter of the intake valve is 2.05 and the diameter of the exhaust valve is 1.6. The outside diameter of the outer spring is 1.55 and the maximum valve lift is 0.65.
