Edelbrock

77629

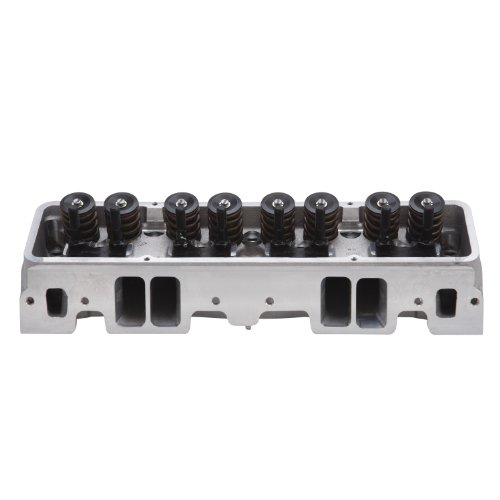

Edelbrock 77629 Victor Junior Cylinder Head

EAN: 0085347776290

UPC: 085347776290

Cylinder Heads

Affordable maximum power head for competition and ultra high-performance street
530-580 horsepower potential, out-of-the-box, for a cost effective, race-winning set-up
70cc chambers with 215cc intake ports
Size of intake valve is 2.08" and exhaust valve is 1.60"
Accepts standard 23 degree valvetrain hardware

The Edelbrock Victor Junior Cylinder Head is ideal for those who desire affordable heads that make maximum power. It is designed specifically for the needs of competition and ultra high performance street engines. They offer increased horsepower and RPM potential in an out-of-the-box, cost effective and race winning setup. They feature CNC gasket-matched port entries/exits with blended valve bowls. The material of the cylinder head is made of aluminum with a natural finish. The intake runner volume is 215cc, the exhaust runner volume is 85cc and the combustion chamber volume is 70cc. The diameter of the intake valve is 2.08 and the diameter of the exhaust valve is 1.6. The outside diameter of the outer spring is 1.55 and the maximum valve lift is 0.65. The rocker arm nut thread size is 7/16-20 and the guide plate pushrod size is 5/16. The intake valves, exhaust valve, valve springs, retainers, locks, guide plate, valve stem seals are all included. The damper spring, rocker arms, nuts, drilled steam holes, and heat crossover is not included.
