Superwinch

1430200

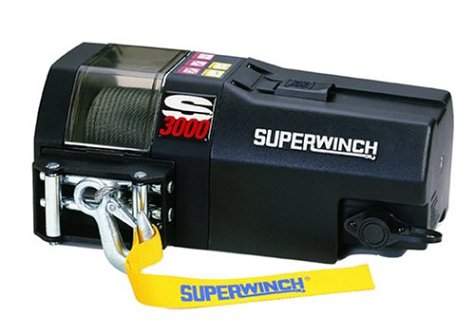

Superwinch 1430200 S3000, 12 VDC winch, 3,000lb/1360 kg single line pull with roller fairlead & 30' remote

EAN: 0022705000338

UPC: 022705000338

Winches

12 VDC 1.3 hp Sealed Permanent Magnet Motor / 17 Feet per minute line speed
30' Rubber Handheld Remote
Roller Fairlead
Instant Stop Design with absolutely no coasting
Dimensions measure 15.1"l. x 8.7"d. x 6.0"h; 38-lbs

Superwinch S3000 12 VDC Trailer Winch is designed for fast-and-easy installation, and is the ideal choice for all your trailer winching needs. The S Series from Superwinch is the most popular performance trailer winch on the market for a good reason. It has race proven reliability, full metal gears, powerful motor, integrated sealed solenoid, and rugged 30' hand-held remote. The winch is pre-mounted and sealed to protect from elements. The freespool clutch is designed for fast wire rope payout and is operated by a lever knob which disengages the gearbox to allow the wire rope to be pulled out without using electric power. Other standard features include power in and out, instant stop with absolutely no coasting, mechanical and dynamic braking, roller fairlead, 60' x 3/16" galvanized cable and a fully weather resistant protective cover that helps keep the weather out. It is backed by Limited Lifetime warranty on mechanical parts and 1 year on the solenoid and electrical.
The Superwinch S3000 Trailer Winch is designed for fast-and-easy installation, and is the ideal intermittent-duty choice for all your trailer winching needs. Race proven, this winch has a powerful motor, an integrated sealed switching solenoid, and rugged handheld remote. Other standard features include power in and out, freespooling drum, instant stop with absolutely no coasting, mechanical and dynamic braking, and roller fairlead. And the fully weather resistant protective cover helps keep the weather out. The freespool clutch, designed for fast wire rope payout, is operated by a pull-and-turn knob which disengages the gearbox to allow the wire rope to be pulled out without using electric power.

Superwinch Brand: Power when you need it, where you need it.

Multiple Uses: The ideal intermittent-duty choice for all your trailer winching needs.

   Standard Features    Power Load IN and OUT    Mechanical and Dynamic Brake    Full-metal Gear-train    Freespooling Clutch for Fast Wire Rope Payout    High Efficiency Low Amp Draw Motor    Commercial Grade Integrally Mounted Sealed Contactor    Circuit Breaker Protected    Durable Handheld Remote Switch on 30' Lead    Roller Fairlead    Performance 12VDC (1st layer on drum)    Line Pull    lbs./kg Line Speed FPM (m/m) Motor Amps 12V                     0 27.7 (8.4)   15    1,000   (454) 12.5 (3.8)   70    2,000   (907)   9.0 (2.7) 117    2,500 (1,134)   7.5 (2.3) 155    3,000 (1,361)   4.5 (1.4) 220    Specifications    Rated Line Pull (Single Line) 3,000 lb. (1,361 kg)    Motor 1.3 horsepower (12V or 24V DC)    Gearing Differential Planetary    Gear Ratio 159:1    Freespooling Clutch Lever action    Braking Mechanical and Dynamic    Wire Rope 3/16" x 60' (4.8mm x 18.2m) with Latched Hook    Dimensions 15.1"l. x 8.7"d. x 6.0"h. (383mm l. x 221mm d. x 152mm h.)    Drum Diameter 1.625" (41.3mm)    Drum Length 3" (76.2mm)    Weight 38 lb. (17.3 kg)    Switching Method 30' Rubber Handheld Remote    Switching Mechanism Commercial Grade Contactor    Roller Fairlead Standard    Wireless Remote Control Optional   Â
