Superwinch

1330200

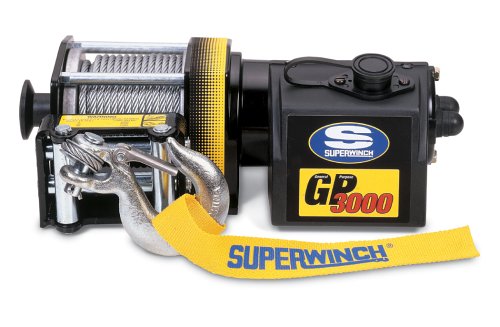

Superwinch 1330200 GP3000, 12 VDC winch, 3,000lb/1360 kg single line pull with pulley block, Roller Fairlead & rubber remote

EAN: 0022705000321

UPC: 022705000321

Winches & Mounts

12-Volt DC winch with 3,000-lb capacity
Wire rope measures 50' x 3/16"
Hand-held remote with 15' lead for covenient and safe use
Dimensions measure 12.7"l. x 4.5"d. x 4.6"h; 15-lbs
Load doubling Pulley Block boosts pull to 6000 lbs

Superwinch GP3000 General Purpose Series Winch is designed to be compact and dependable for all the your needs. It can also be used effIciently at workshops, trailers and for jobs around the house. This winch features mechanical and dynamic braking. It includes a free-spooling clutch for fast wire payout. Constructed with a low amp, permanent magnet motor protected by a circuit breaker, the GP3000 delivers the reliable performance that has made Superwinch the brand users recognize and trust. It possesses a rugged full metal 1-stage planetary gear train, a 3,000-LB pull rating, a 1.1 horsepower permanent magnet low-amp draw motor, 50-feet of durable 3/16" wire rope, a heavy-duty 4-way roller fairlead, a wired handheld remote with 15' lead, a free-spooling pull and turn clutch, a sealed submersible solenoid and protected with at circuit breaker. It is backed by Limited Lifetime warranty on mechanical parts,and 3 years on the Solenoid and 1 year on the electrical.
The Superwinch GP3000 Winch is designed for fast-and-easy installation, and is ideal for intermittent-duty general use. This winch is loaded with big winch features such as power in and power out, mechanical and dynamic braking, freespooling drum, a rugged 15-foot handheld remote, pre-mounted sealed switching solenoid, roller fairlead, and 60 feet of wire rope. Each winch also is equipped with a permanent magnet motor and freespool clutch that is designed for fast wire rope payout. The freespool is operated by a pull-and-turn knob which disengages the gearbox to allow the wire rope to be pulled out without using electric power.

This winch can handle a 3,000 pound working load, and is designed with a high-efficiency low-amp draw motor and a protected circuit breaker.

Superwinch Brand: Power when you need it, where you need it.

Multiple Uses: The ideal choice for all your intermittent-duty winching needs.

   Standard Features    Powers Load IN and OUT    Mechanical and Dynamic Brake    Full-metal Planetary Gear-train    Freespooling Clutch for Fast Wire Rope Payout    High Efficiency Low Amp Draw Motor    Commercial Grade Contactor Pre-mounted and Sealed Against the Elements    Circuit Breaker Protected    Durable Handheld Remote Switch on 15' Lead    Cable Tension Plate    Performance 12VDC (1st layer on drum)    Line Pull    lbs./kg Line Speed FPM (m/m) Motor Amps 12V                      0 12.0 (3.6)   15          500 (227) 11.0 (3.3)   38       1,000 (454) 10.5 (3.2)   60       1,500 (680)   9.0 (2.7)   85       1,800 (816)   8.1 (2.5) 100    2,300 (1,043)   7.0 (2.1) 130    2,500 (1,133)   6.5 (2.0) 140    3,000 (1,361)   5.0 (1.5) 180    Specifications    Rated Line Pull (Single Line) 3,000 lb. (1,361 kg)    Motor 1.1 horsepower (12V DC)    Gearing Differential Planetary    Gear Ratio 153:1    Freespooling Clutch Pull and Turn    Braking Mechanical and Dynamic    Wire Rope 3/16" x 50' (4.8mm x 15.2m) with Latched Hook    Dimensions 12.7"l. x 4.5"d. x 4.6"h. (322.6mm l. x 114.3mmd. x 116.8mm h.)    Drum Diameter 1.25" (31.8mm)    Drum Length 2.9" (73.7mm)    Weight 15 lb. (6.8 kg)    Switching Method 15' Handheld Remote    Switching Mechanism Commercial Grade Contactor    Roller Fairlead Standard    Pulley Block Standard    Color-Coded Wiring Yes    Wireless Remote Control Optional   Â
