Winches & Mounts Superwinch 6034

Superwinch

6034

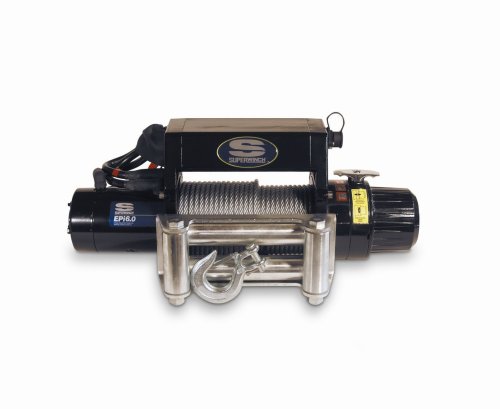

Superwinch 06034 EPi6.0 Series Master Winch

EAN: 0022705000567

UPC: 022705000567

Winches & Mounts


12-Volt DC winch with a 6,000-lb capacity
Wire rope measures 100 feet
Rubber handheld remote with 12 feet lead for convenient and safe use
Dimensions measure 22.36" l. x 6.26" d. x 9l84" h; 109-lbs
Roller Fairlead included

Superwinch EPi6.0 Series Master Winch is designed to be compact and dependable for all the vehicles utility needs. It can also be used effIciently at workshops, trailers and for jobs around the house. This winch features mechanical and dynamic braking. It includes a free-spooling drum for fast wire payout. It consists of 12-foot handheld remote switch made from cable tension plate for better performance. This winch is engineered with high-efficiency low amp draw motor and protected circuit breaker. It is pre-mounted and sealed to protect from elements. It is backed by 1 year warranty for defects in materials and workmanship.
The Superwinch EPi6.0 Front-Mount Winch is designed for fast-and-easy installation, and comes fully equipped to meet all of your heavy-duty recovery applications. This winch is packed with the features you want: efficient three-stage planetary gear train, automatic load-holding brake, sealed switching, rugged handheld remote, freespooling, power in and out, and a roller fairlead standard. The freespool clutch is designed for fast wire rope payout, and it is operated by a pull-and-turn knob which disengages the gearbox to allow the wire rope to be pulled out without using electrical power. The EPi6.0 is loaded with the same features as the EP6.0, plus 25 additional feet of wire rope and an attractive integrally-mounted sealed contractor bridge.

With the brake mechanism mounted at the end of the gear box, this winch is ideal for use with synthetic rope. The EPi6.0 also features a 12V wound electric motor, a 12-foot hand-held pendant remote switch and an automatic load holding brake. This winch will hold a rated line pull of 6000-pounds. Speed, power, and a compact design make this winch a must-have for all your recovery applications.

Limited Lifetime Warranty
Superwinch, Inc., warrants to the original retail buyer only that the mechanical components of all genuine SUPERWINCH Winch Models shall be free from defects in materials and workmanship from the provable date of purchase of the new Product for the lifetime of the winch, the electrical components shall be free from defects in materials and workmanship for one (1) year and the S3 solenoid for three (3) years from the provable date of purchase.



Superwinch Brand: Power when you need it, where you need it.


Multiple Uses: Fully equipped to meet all your heavy-duty recovery applications.

   Standard Features

   Power In and Power Out


   Automatic Load Holding Brake

   Quiet, Efficient, Full Metal 3-Stage Planetary Gear Box

   Freespooling Clutch for Fast Wire Rope Payout

   Efficient 3.6 horsepower Series Wound Motor

   Heavy Duty Sealed Contactor

   Durable Handheld Remote Switch on 15' Lead

   Heavy Duty Roller Fairlead -- Roller fairlead does not attach directly to the winch.

   Performance 12VDC (1st layer on drum)

   Line Pull
   lbs./kg

Line Speed
FPM (m/m)

Motor
Amps 12V

Motor
Amps 24V

          0

   58.9 (17.8)

  24

  44

   2,000    (907)

        23 (7.0)

170

102

   4,000 (1,814)

        13 (4.0)

350

210

   6,000 (2,722)

        10 (3.1)

440

264

   Specifications

   Rated Line Pull (Single Line)

6,000 lb. (2,722 kg)

   Motor

3.6 horsepower, series wound

   Gearing

3 Stage Planetary

   Gear Ratio

156:1

   Freespooling Clutch

Lift and turn

   Braking

Automatic 100% Load Holding

   Wire Rope

21/64" x 125' (8.3mm x 38.1m)

   Dimensions

22.36" l. x 6.26" d. x 9.84" h.

(568mm l. x 159mm d. x 250mm h.)

   Drum Diameter

2.5" (64mm)

   Drum Length

9" (229mm)

   Weight

109 lb. (49.5 kg)

   Switching Method

12' Rubber Handheld Remote

   Switching Mechanism

Heavy Duty Sealed Contactor

   Roller Fairlead

Standard

   Color-Coded Wiring

Standard

   Wireless Remote Control

Optional
