Towing Products & Winches Superwinch 1123200

Superwinch

1123200

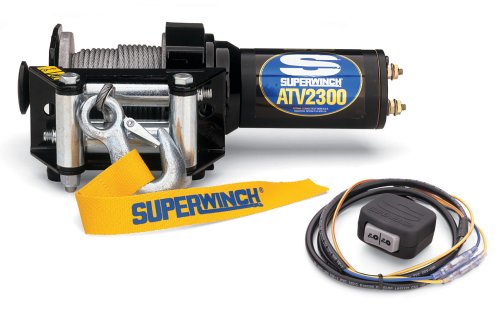

Superwinch 1123200 ATV2300 Series Master Winch

EAN: 0022705000284

UPC: 022705000284

Towing Products & Winches


12-Volt DC ATV winch with a capacity to pull 2,000 lbs
Galvanized wire cable measures 50' x 3/16"
Rocker-style "roggle" switch is coveniently located on the handlebars and the sealed relay is protected from the elements
Dimensions measure 12.5"l. x 3.9"d. x 4.1"h; 14-lbs
Roller Fairlead Included

Superwinch ATV2300 Series Master Winch is designed to be compact and dependable for all the vehicles utility needs. It can also be used effIciently at workshops, trailers and for jobs around the house. This winch features mechanical and dynamic braking. It includes a free-spooling drum for fast wire payout. It consists of 15-foot handheld remote switch made from cable tension plate for better performance. This winch is engineered with high-efficiency low amp draw motor and protected circuit breaker. It is pre-mounted and sealed to protect from elements. It is backed by 1 year warranty for defects in materials and workmanship.
The Superwinch ATV2300 Winch is designed for fast-and-easy installation, and can be used in the toughest of ATV environments. With a single line rated capacity of 2300 pounds and Superwinch's sealed switching system, you'll be ready to get out of virtually anything you get into. In addition, the unique handlebar-mounted roggle (combination rocker and toggle switch) can be mounted in a variety of positions to suit your individual needs.

This winch is equipped with a permanent magnet motor and is ideal for intermittent-duty general use. The Freespool Clutch, designed for fast wire rope payout, is operated by a pull-and-turn knob that disengages the gearbox to allow the wire rope to be pulled out without using electric power. The Superwinch features a mechanical and dynamic brake, a high-efficiency/low-amp draw motor, and a roller fairlead.



Superwinch Brand: Power when you need it, where you need it.


Multiple Uses: The ideal intermittent-duty choice in the toughest ATV environments.

   Standard Features

   Powers Load IN and OUT


   Mechanical and Dynamic Brake

   Full-metal Planetary Gear-train

   Freespooling Clutch for Fast Wire Rope Payout

   High Efficiency Low Amp Draw Motor

   Heavy Duty Switching Relay Sealed to Protect Against the Elements

   Convenient Handlebar Mounted Low Amp “Roggle” Switch

   Circuit Breaker Protected

   Roller Fairlead

   Performance 12VDC (1st layer on drum)

   Line Pull
   lbs./kg

Line Speed
FPM (m/m)

Motor
Amps 12V

   0

26.9 (8.2)

    8

   500 (227)

12.5 (3.8)

  30

   1,000 (454)

  9.8 (3.0)

  60

   1,500 (680)

  6.5 (2.0)

  90

   1,800 (816)

  5.7 (1.7)

108

   2,300 (1043)

  1.5 (0.5)

140

   Specifications

   Rated Line Pull (Single Line)

2,300 lb. (1043 kg)

   Motor

0.71 horsepower (12V DC)

   Gearing

Differential Planetary

   Gear Ratio

153:1

   Freespooling Clutch

Pull and Turn

   Braking

Mechanical and Dynamic

   Wire Rope

5/32" x 50' (3.9mm x 15.2m) with Latched Hook

   Dimensions

12.5"l. x 3.9"d. x 4.1"h.

(317.5mm l. x 100mm d. x 104mm h.)

   Drum Diameter

1.25" (31.8mm)

   Drum Length

2.9" (73.7mm)

   Weight

14 lb. (6.4 kg)

   Switching Method

Handlebar Mounted Roggle

   Switching Mechanism

Heavy Duty Sealed Switching Relay

   Roller Fairlead

Standard

   Color-Coded Wiring

Yes

   Wireless Remote Control

Optional
