Haldex

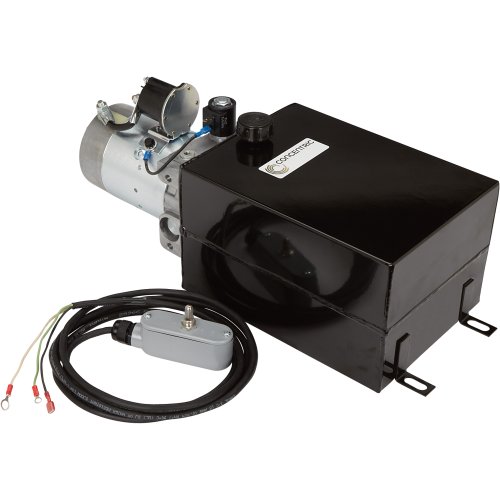

Haldex 12 Volt DC Power Unit - Solenoid Operation, Single Acting, Model# 1261096

Power Units

Operation: Solenoid w/Remote Cord Set

The Concentric 12V DC power unit with solenoid operation is used in applications where control valves are mounted externally away from power units. Flow and pressure to manifolds allow usage in many applications. Return port for returning oil back to tank. Check and relief valve. 9/16in.-18 SAE ports. Items 1076 and 1077 are for double acting cylinders others are for single acting cylinders. Reservoir Capacity 2 1/2 gal., Flow GPM 1.4 at 1,600 PSI, Max. PSI 2,500, Max. RPM 1,750, Displacement cc 2.11, Volts 12 DC, Phase 12V DC, HP 1.3, Inlet Port in. 9/16 18 SAE, Outlet Port in. 9/16 18 SAE, Displacement cu. in. 0.129. Operation Solenoid w/Remote Cord Set
